Model : | NINA S – Professional mini HIGH LOAD Lithium-Ion Battery Pack |
Mount Type : | V – Mount ( V-lock holder ) |
Power Meter : | Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity ) |
Product Color : | Dark Grey |
Bat. Cell Model : | LG High Load Stand 18650 x 4 |
Bat. Cell Chemistry : | Lithium-Ion |
Output Voltage : | 14.4V DC |
Minimum Out Voltage : | 10.0V DC ( Auto Power Control ) |
Capacity : | 3500 mAh / 52Wh – On AIR Transport Certification |
Maximum Load : | 8A / 100W |
USB Output : | 5V, 12W / 2.4A max ( Dust Protection Cover ) |
D-Tap Output : | 14.8V, 100W / 6.8A max ( Bidirectional Mod ) |
Internal Protection : | Cells Framing Construction System |
Maximum Charge : | 16.8V / 3.0A |
Dimensions (WxHxD) : | 105 x 75 x 36 mm |
Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
Weight : | 318 g / 0.70 lb |

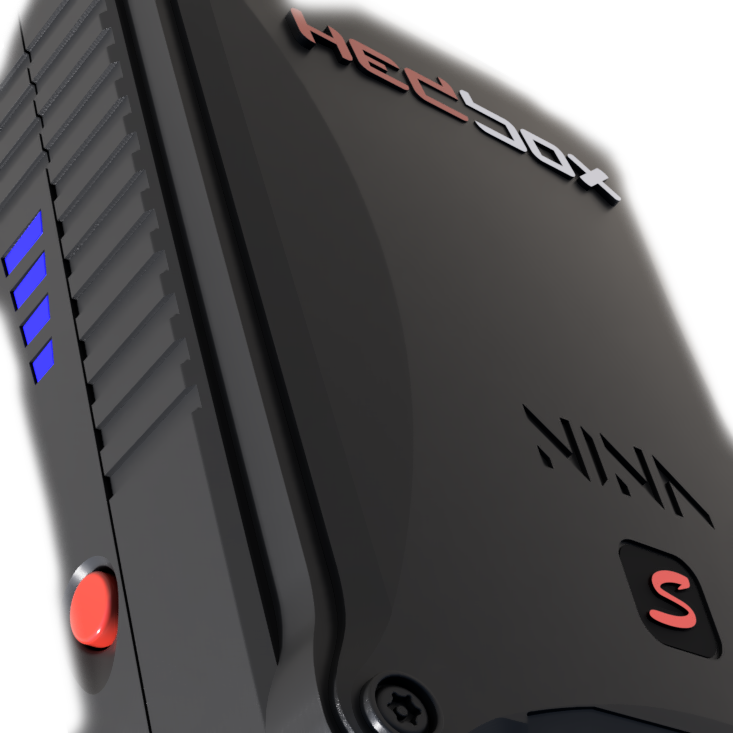

NINA S
55 Wh Mini V-Mount Li-Ion Battery Pack
Bidirectional D-Tap Connector and USB Out
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
