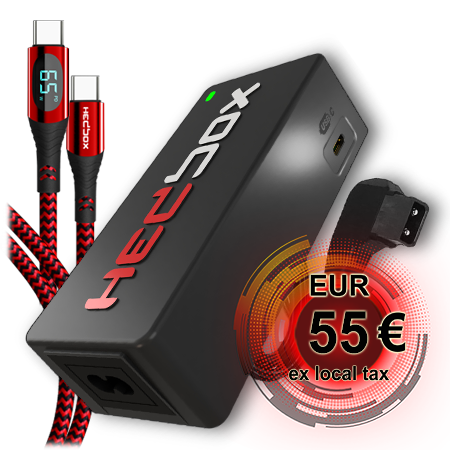

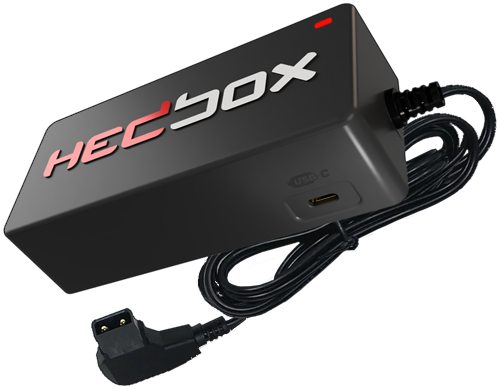

HED-DC10

D-Tap Battery Charger 3A
with USB-C PPS PD 3.0

The HED-DC10 is a Li-Ion Battery Charger that charges the battery using D-Tap power out. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge the battery fast and safely. The IDL (Identification Display Led) with red and green light illumination provides a clear display of power and charging status. Supplied with extra USB-C Power Out supporting the PPS PD 3.0 Power Delivery, provides safe charge and power for any USB powered device.

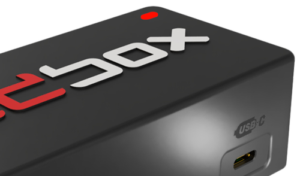

Ready to Charge

When the Charger is plugged into a power outlet,
the IDL Display (Indication Display Led) lights up green.



Charging Start

When connecting a battery for charging via D-tap or USB-C,
the IDL Display (Indication Display Led) will illuminate in red.



USB-C, Power Out
PPS and PD 3.0

Through its additional integration of an extra USB-C power output.
Charger can provide PPS and Power Delivery PD 3.0 to any USB-C powered devices.
USB-C can sustain 5V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A (65W) and support
PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A

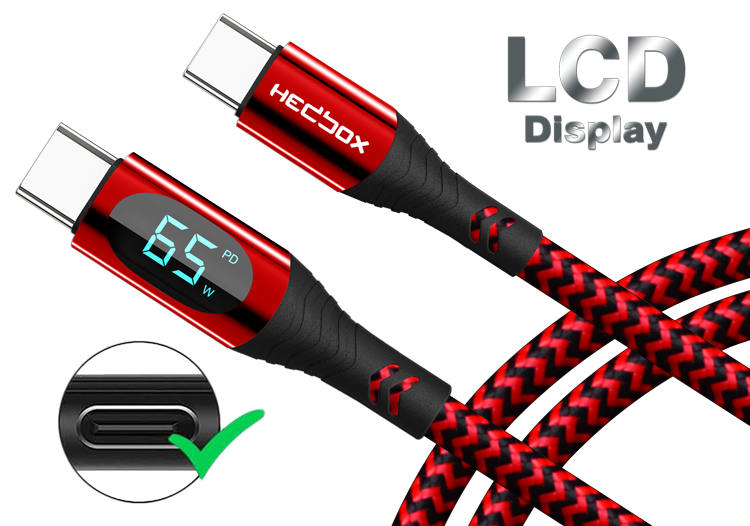

USB-C LED Cable Included

The cable has an LED display that in real-time show charging power, charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just show charging power, it neither increases nor decrease charging current)
– Cable Lenght: 1.2m / 3.93 ft
– Cable Type: USB-C to USB-C
– Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
– Super fast charging 2.0 and PPS 65W/45W/25W

HED BP Batteries
UNIX V-Mount Plates
NERO V-Mount Batteries
NERO-XL V-Mount Battery

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :HED-DC10 Intelligent D-Tap Digital IDL Battery Charger
AC Power In : AC 110 – 240V , 50/60Hz
DC Power Out :DC 16.8V
Power Consumption :Max 85W
D-Tap Output :16.8V / 3A (Max)
USB Output :USB-C / PPS PD 3.0 / 65W (Max)
Support:Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
Charging Method:Super fast charging 2.0 and PPS 65W/45W/25W
Charging Type :Ni-CD , Ni-MH , Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :124 x 56 x 34.5 mm / 48.8 x 22.0 x 13.6 In
Weight :224 g / 7.9 oz.
Supplied cable :RPC-D65W USB-C to USB-C LCD PPS PD 3.0 Power Cable / 1.2m



Supported products

Package includes

Under the FAA, IATA, PHMSA, and IMDG regulations, the NINA battery is factory packed in an anti-static plastic bag and put into a cardboard box with internal shock resistance protection. This kind of packaging makes travel and transportation safe on the SeaAir, and Road.

  • 1x HED-DC10 IDL D-Tap Digital Battery Charger
  • 1x RPC-D65W USB-C LCD Fast Charging Cable
  • 1x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 1x QR Code Card - User Manual
  • On-Line Product Registration
1x HED-DC10 IDL D-Tap Digital Battery Charger
1x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
