Cine & Pro Battery

NERO M



NERO M

Medium in range, standard for work
New V-lock Li-Ion Battery 150 Wh
D-tap & USB Out

The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands, this new advanced system not only makes the NERO batteries much safer for daily professional use, but also for transportation.
NERO M represents the medium cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO M can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.



NEW Cells Framing Construction System

NERO use NEW and revolutionary Cells Framing Construction System, that provide extra security and stability to the inner battery cells. With this new advance system NERO is much more safe for transportation and daily operational use, compering to all other Battery Brands.

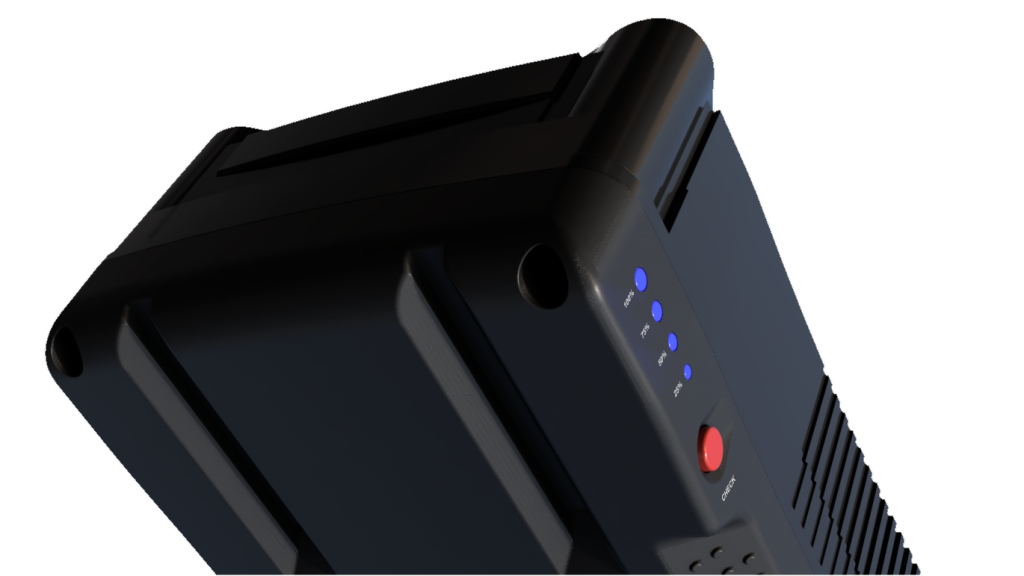

4-LED Power Monitor Indicator

NERO M contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

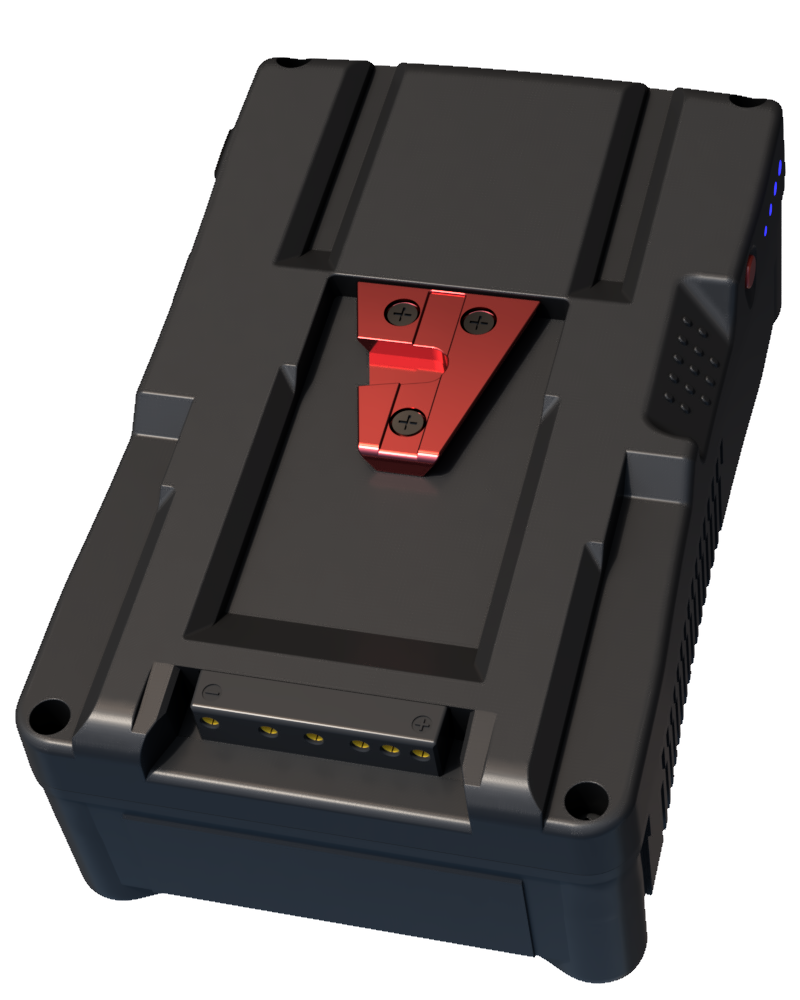

V – Mount Connection Holder

NERO M has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure safe and reliable mounting.

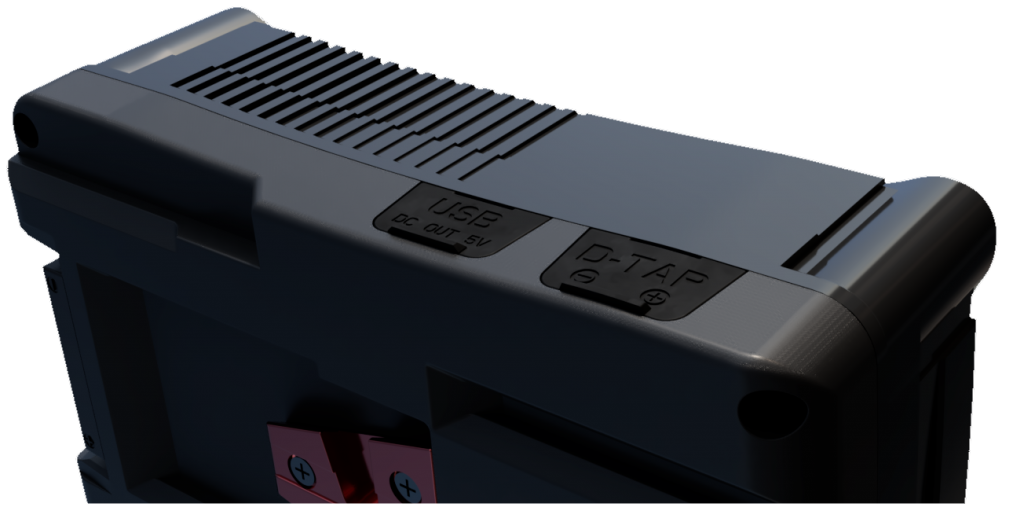

Built-in D-Tap and USB Output Socket

Through it’s additional integrated D-Tap DC Power output the NERO M can deliver
14.8V, 118W/8A to all professional devices.
An extra USB power output allows the
charging of mobile phones, tablets or other accessories using one single battery.

Cine NERO M Battery can be used with these products:

RP-DC200V - Charger
HED-DC150V - V-Mount Charger
HED-DC10 - D-Tap / USB-C Charger
UNIX - V-Mount Battery Plates

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :NERO M – Professional HIGH LOAD Lithium-Ion Battery Pack
Mount Type :V – Mount ( V-lock holder )
Power Meter : Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )
Product Color :Dark Grey
Bat. Cell Model : LG High Load Stand 18650 x 16
Bat. Cell Chemistry : Lithium-Ion
Output Voltage :14.8V DC
Minimum Out Voltage : 10.0V DC ( Auto Power Control )
Capacity : 10400 mAh / 150 Wh
Maximum Load : 13A / 190W
USB Output :5V, 12W / 2.4A max ( Dust Protection Cover )
D-Tap Output :14.8V, 100W / 6.8A max ( Dust Protection Cover )
Internal Protection :Cells Framing Construction System
Maximum Charge :16.8V / 3.0A
Dimensions (WxHxD) : 152 x 96 x 60 mm / 5.98 x 3.78 x 2.36″
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Weight :880 g / 1.94 lb

Supported products

Video presentation of product

Package includes

Under the FAA, IATA, PHMSA and IMDG regulation, the NERO M is factory packed in an anti-static plastic bag and put in to a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the SeaAir and Road.

  • 1 x NERO M BATTERY PACK
  • 1x QR Code Card - User Manual
  • 2 Year Limited Warranty
  • On-Line Product Registration
