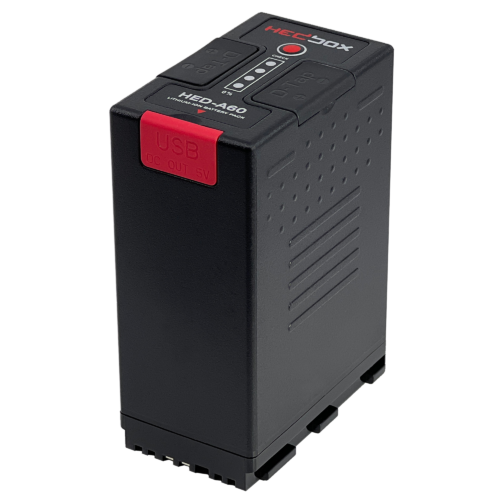

HED-A60

Digital High Capacity Li-Ion Battery with 2x D-Tap and USB Power Out

The HED-A60 is the Lithium-Ion Battery Pack (14.4V, 96.48Wh) designed to power Canon HD camcorders that use a BP-A style battery. It consists of LG high-quality internal battery cells and features an output of 14.4V and a capacity of 6700mAh / 96.48Wh. The battery pack includes one USB and two D-Tap outputs with dust covers that provide power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. Using the built-in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen.

High Power Capacity 97Wh

This high-capacity lithium-ion battery pack can power Canon HD Camcorders EOS C500, C500 MKII, C300, C300 MKII,  C200, C200 MKII, including the latest models EOS C70 and XF605, XF706. The HED-A60 includes an external USB 5V/5W/1A power output, and a Dual D-Tap DC 14.4V power output, that can deliver 115W/8A for all professional external devices.

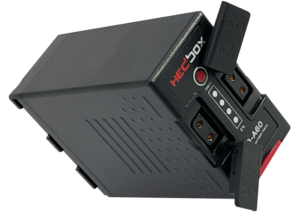

Built-in Dual D-Tap 14.4V, 8A, 97W Output Socket

HED-A60 battery pack is equipped with a dual D-tap DC output socket on top. With this external power supply facility, you can connect two different products, like an on-camera LED light and video monitor or a wireless transmitter and digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The opposite orientation of the D-Tap connectors provides more flexibility during everyday operation. The max power from the two D-taps is 95W.

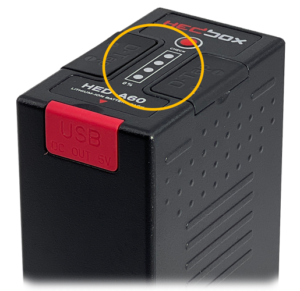

LED Monitor Indicator

HED-A60 contains a built-in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

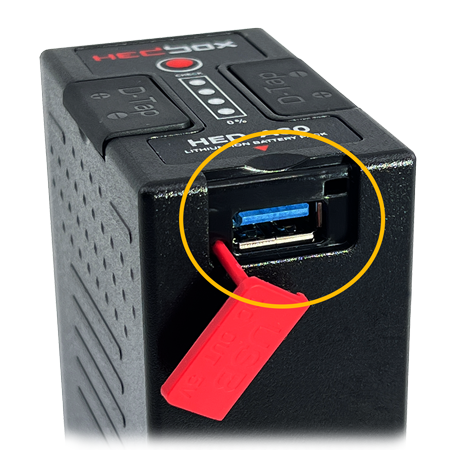

Built-in USB 5V, 1A Socket

The USB 5V/1A output can be used to power any external USB electronic devices. This function allows you to use the HED-A60 like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.



Data Communication with Camcorder

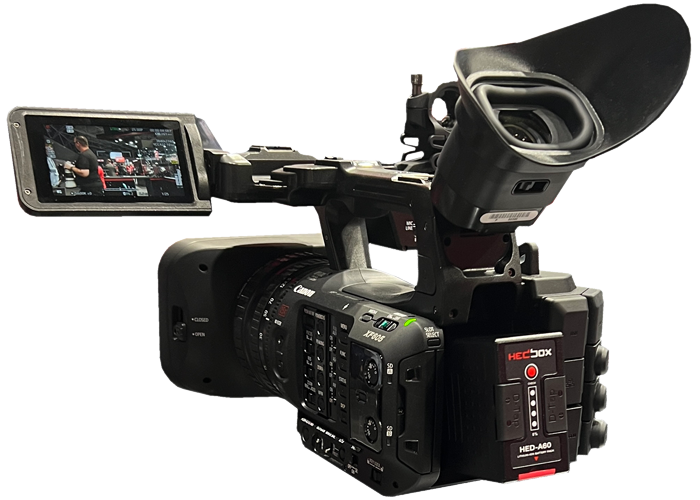

Using the built-in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen. HED-A60 is fully compatible with latest Canon models EOS C70 and XF605, XF705 Camcorders








HED-A60

Find a store near you

Pro Battery Pack HED-A60 can be used with these products

RP-DC50 - Dual Charger
RP-DC50 - Dual Charger

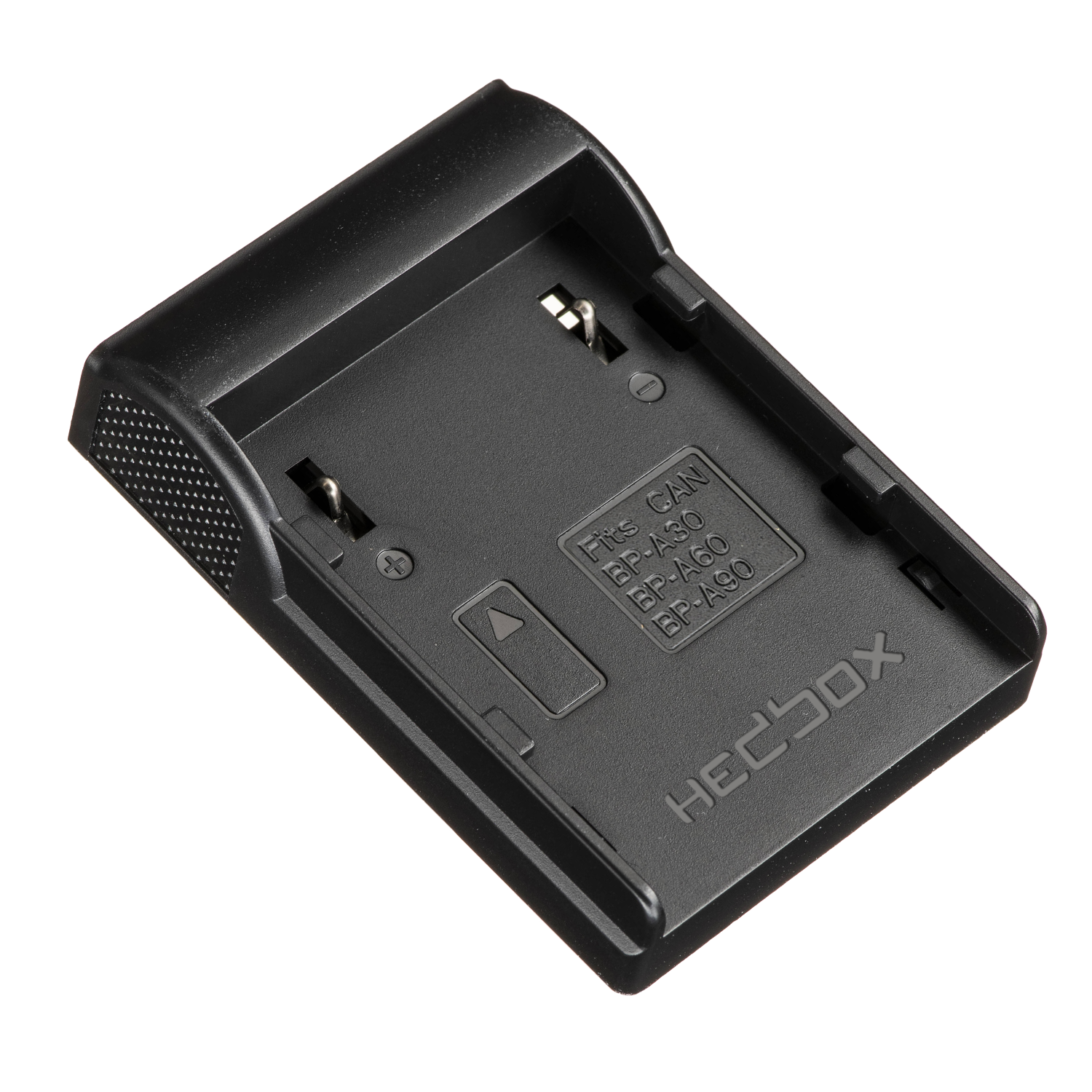

RP-BPA60 - Charger Plate
RP-BPA60 - Charger Plate
FIREBAG-M Protective Bag
FIREBAG-M Protective Bag
HED-DC55 - Dual Charger
HED-DC55 - Dual Charger

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :HED-A60 Info-Lithium Battery Pack with 4-LED Power Monitor
Mount Method :Canon BP-A Style
Product Color :Dark Grey / Black Color
Bat. Cell Model :LG AA High Quality 18650 x 8 / 3350mAh
Bat. Cell Chemistry :Lithium-Ion
Output Voltage :14.4V DC
Capacity :6700 mAh / 96.48Wh
Maximum Load :10A / 145W
USB Output :5V, 5W / 1A max ( Dust Protection Cover BLACK Color)
D-Tap Output 1 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
D-Tap Output 2 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Power Meter :4-level BLUE Color LED Power indicator
Data Comm. :Built-in Microprocessor for Data Communication with Canon EOS C300 Mark II, C200, C200 MKII, C500 MKII, C70, XF605, XF705 Camera
Dimensions (WxHxD) :90 × 70 x 40 mm
Weight :445 g
Charging Mode :For best charging performances and maximum charging capacity use HEDBOX RP-DC50 Digital Charger with RP-BPA60 Battery Plate



Supported products

Package includes

Under the FAA, IATA, PHMSA, and IMDG regulations, the HED-BP95D is factory packed in an anti-static plastic bag and put into a cardboard box with internal shock resistance protection. This kind of packaging makes travel and transportation safe on the Sea, Air, and Road.

  • 1 x HED-A60 BATTERY PACK
  • 1x QR Code Card - User Manual
  • 1 x 2 Year Limited Warranty
  • On-Line Product Registration
1 x HED-A60 BATTERY PACK
1x QR Code Card - User Manual
1 x 2 Year Limited Warranty
On-Line Product Registration
