Cine & Pro Battery



Digital High Capacity Li-Ion Battery with 2x D-Tap and USB Power Out

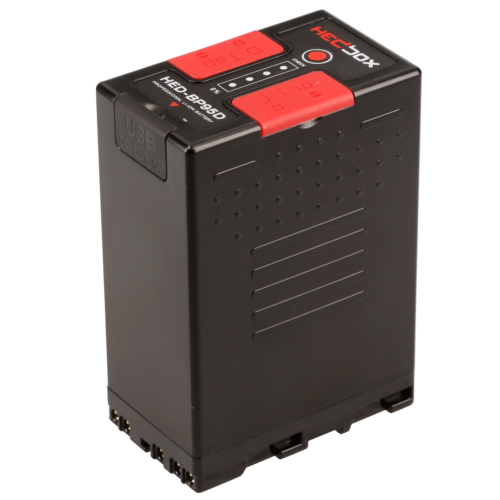

The HED-BP95D is the Lithium-Ion Battery Pack (14.4V, 96.48Wh) designed to power Sony and the new Black Magic Design PYXIS HD camcorders that use a BP-U style battery. It consists of high-quality internal battery cells and features an output of 14.4V and a capacity of 6700mAh / 96.48Wh. The battery pack includes one USB and two D-Tap outputs with dust covers that provide power to external devices such as on-cameras LED lights, monitors, wireless transmitters, and digital recorders. A 4-LED power meter displays the remaining battery percentage at 100, 75, 50, and 25%. Using the built-in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen.

High Power Capacity 97Wh

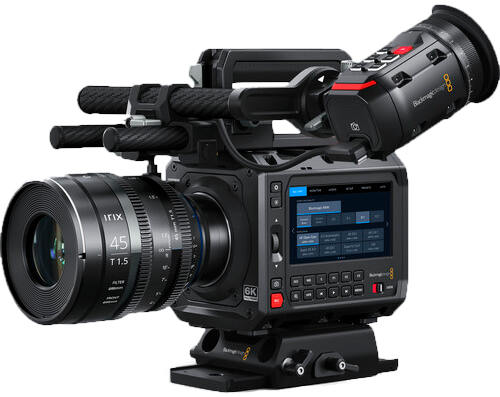

for Black Magic Design PYXIS 6K

This high-capacity lithium-ion battery is designed to power new Black Magic Design PYXIS HD Cinema Box Camera, or any other units that accept the BPU style battery. The HED-BP95D includes an external USB 5V/5W/1A power output, and a Dual D-Tap DC 14.4V power output that can deliver 100W/7A to all professional external devices.

High Power Capacity 97Wh

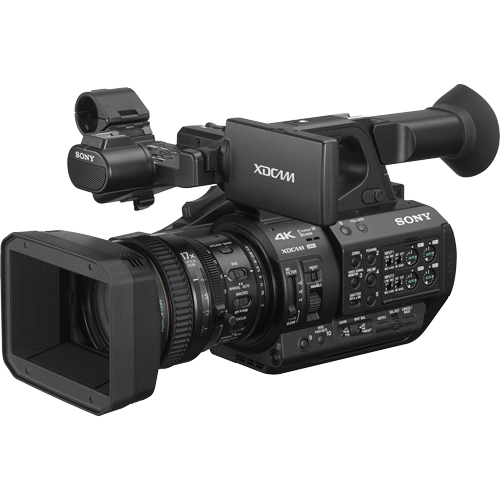

for Sony HD Camcorders

This high-capacity lithium-ion battery pack can power any Sony HD Camcorders like the PMW-EX1, PMW-EX1R, PMW-EX3, PMW-100, PMW-150, PMW-200, PMW-300, PMW-F3, PXW-X160, PXW-X180, PXW-X200, PXW-FS7, including the latest models PXW-Z190, PXW-Z280, PXW-FX6, PXW-FX9, and any other units that accept the BPU style battery.

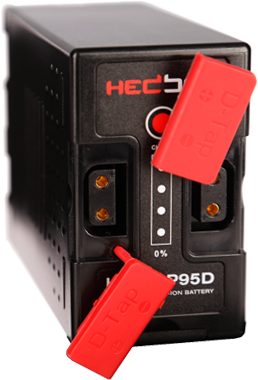

HEDBOX HED-BP95D Dual Dtap Power out

Built-in Dual D-Tap 14.4V/ 8A/ 115W

HED-BP95D battery pack is equipped with a dual D-tap DC output socket on top. With this external power supply facility you can connect two different products, like an on-camera LED light and video monitor or a wireless transmitter and digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The opposite orientation of the D-Tap connectors provides more flexibility during every day operation. The max power from the two D-taps is 115W.

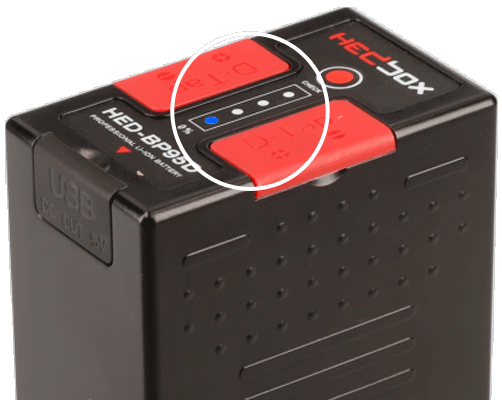

4-LED Monitor Indicator

HED-BP95D contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

HEDBOX HED-BP95D LED Power meter

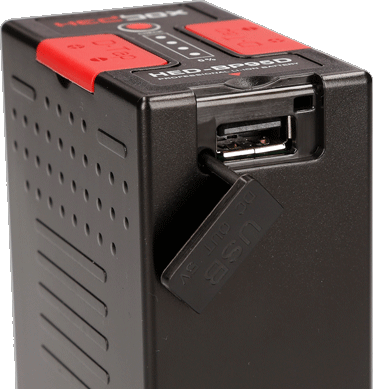

Built-in USB 5V, 1A Socket

The USB 5V/1A output can be used to power any external USB electronic devices. This function allows you to use the HED-BP95D like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.


Data Communication with Camcorder

Using the built in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen. HED-BP95D is fully compatible with latest Sony models PXW-Z190, PXW-Z280 and PXW-FX6, PXW-FX9 Camcorders



Pro Battery Pack HED-BP95D can be used with products

RP-DC50 - Dual Charger
RP-DBPU - Charger Plate
FIREBAG-M Protective Bag
HED-DC55 - Dual Charger

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :HED-BP95D Info-Lithium Battery Pack with 4-LED Power Monitor
Mount Method :Sony BP-U Style
Product Color :Dark Grey / Black Color
Bat. Cell Model :LG AA High Quality 18650 x 8 / 3350mAh
Bat. Cell Chemistry :Lithium-Ion
Output Voltage :14.4V DC
Capacity :6700 mAh / 96.48Wh
Maximum Load :10A / 145W
USB Output :5V, 5W / 1A max ( Dust Protection Cover BLACK Color)
D-Tap Output 1 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
D-Tap Output 2 :14.4V, 115W / 8A max ( Dust Protection Cover RED Color)
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Power Meter :4-level BLUE Color LED Power indicator
Data Comm. :Built-in Microprocessor for Data Communication with Sony PMW and PXW Camcorders
Dimensions (WxHxD) :90 × 70 x 40 mm
Weight :445 g
Charging Mode :For best charging performances and maximum charging capacity use HEDBOX RP-DC50 Digital Charger with RP-DBPU Battery Plate


Supported products

SONY | PMW-300
SONY | PMW-200
SONY | PMW-150
SONY | PMW-100

Video presentation of product

Package includes

Under the FAA, IATA, PHMSA, and IMDG regulations, the HED-BP95D is factory packed in an anti-static plastic bag and put into a cardboard box with internal shock resistance protection. This kind of packaging makes travel and transportation safe on the SeaAir, and Road.

  • 1x QR Code Card - User Manual
  • 1 x 2 Year Limited Warranty
  • On-Line Product Registration
