| Model : | HBP-NPF V-lock DV NP-F Battery Converter Power Adapter Plate |
| Mount Type : | V-Lock ( High Quality Aluminium Alloy wedge plate) |
| DV Battery Slots : | 2 x Sony NP-F Style Battery |
| Output Voltage : | DC 13 – 14.8V , 5A / 72W (max) |
| Support Bat Voltage : | DC 7.2 – 7.6V |
| Supported Capacity : | From 1400mAh to 20000mAh |
| D-Tap DC Output : | 14.8V / 3.5A / 50W (max) |
| Power Meter : | Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% bat. capacity ) |
| Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
| Dimensions (WxDxH) : | 96 x 22 x 151 mm |
| Weight : | 140 g |
| Operational Method : | Mount 2 x DV Sony NPF Style battery to generate 14.8V / 5A V-lock mount DC Power |

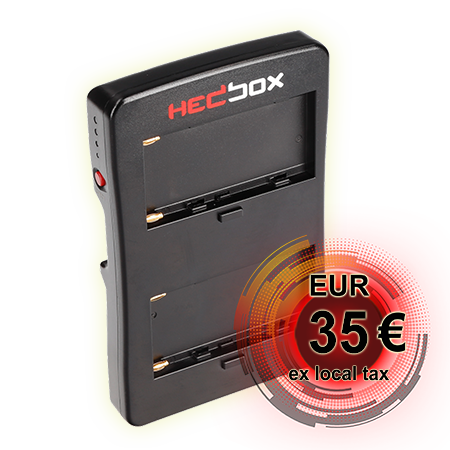

Power V-lock Plate
HBP-NPF
Cost Effective solution for
Professional Broadcast Camcorders

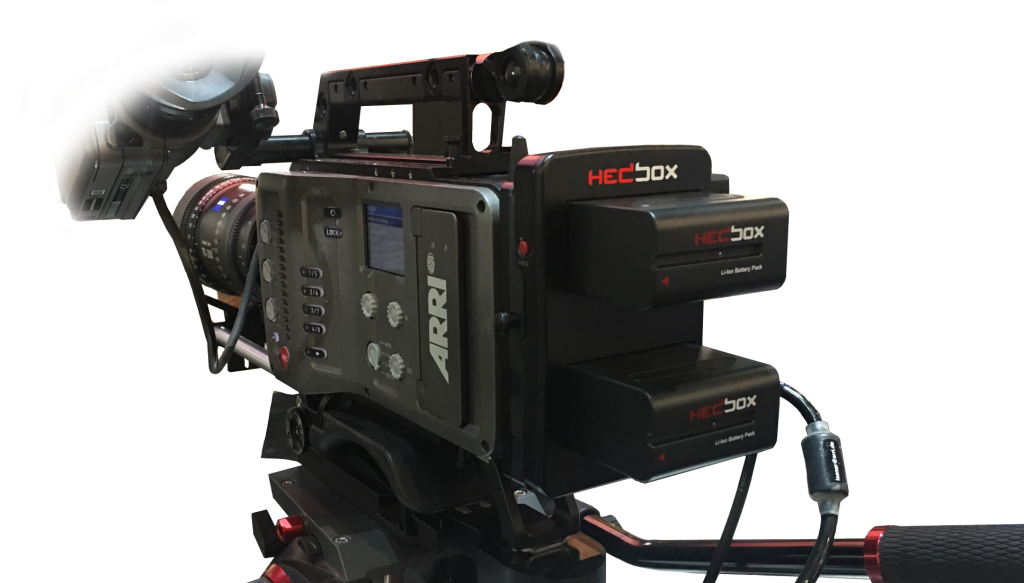

HBP-NPF allows you to power any V-Mount/V-Lock Professional Broadcast Camcorder with two standard high-capacity L-series or NP-F Batteries. With this solution, you will be able to replace usually high cost Processional V-lock batteries, 14.8V, which are the standard to power all Professional Broadcast Camcorders worldwide.

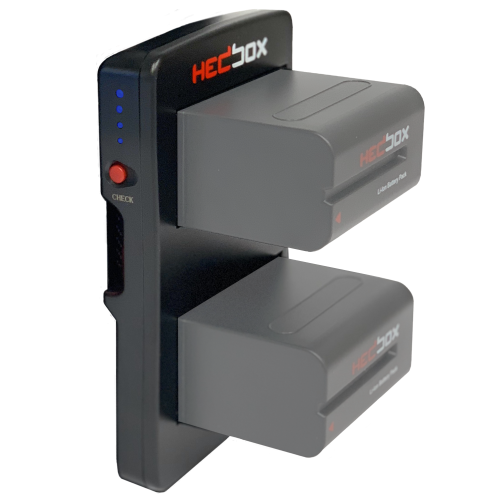

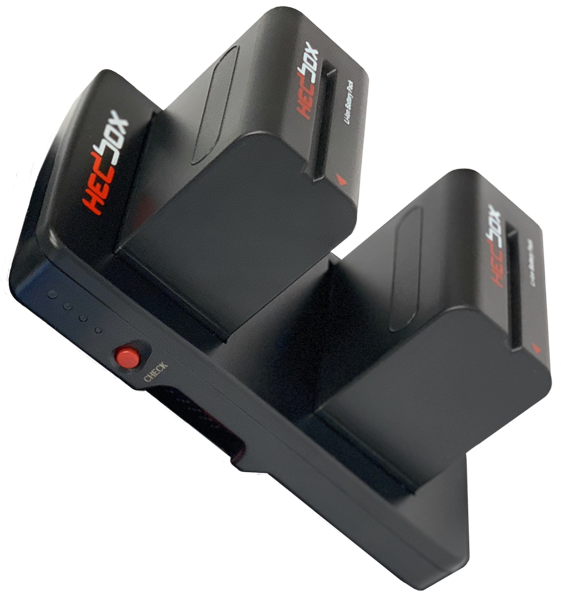

HBP-NPF Plate use standrad
two 7.2V NP-F style Battery Pack
HBP-NPF allows you to power any V-Mount/V-Lock professional broadcast camcorder with two standard high-capacity L-series or NP-F Batteries. The combined voltage of the two L-series or NP-F Batteries should be 14.4V ~ 14.8V, which is the standard output power of a V-Mount battery pack that is used by all professional broadcast camcorders worldwide.

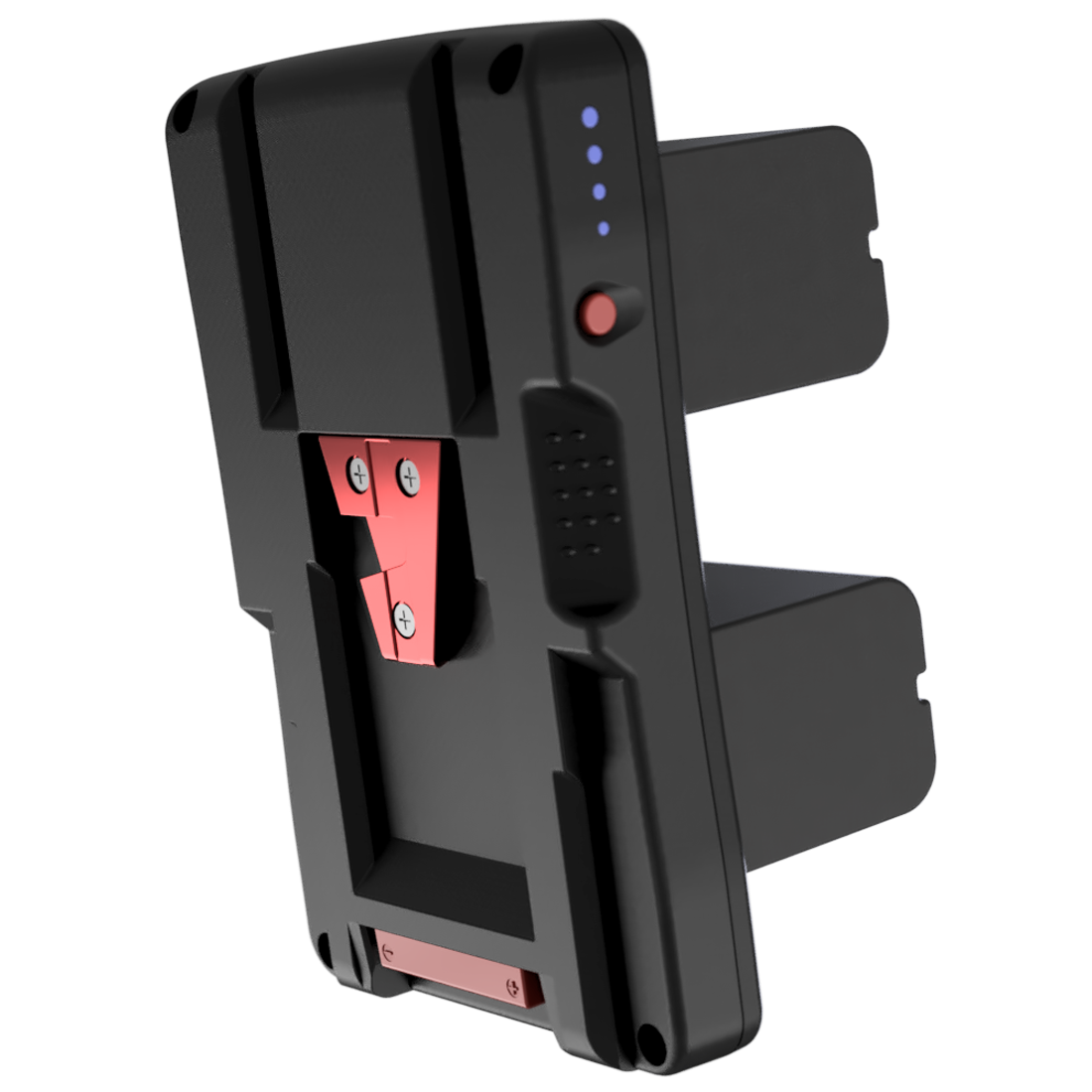

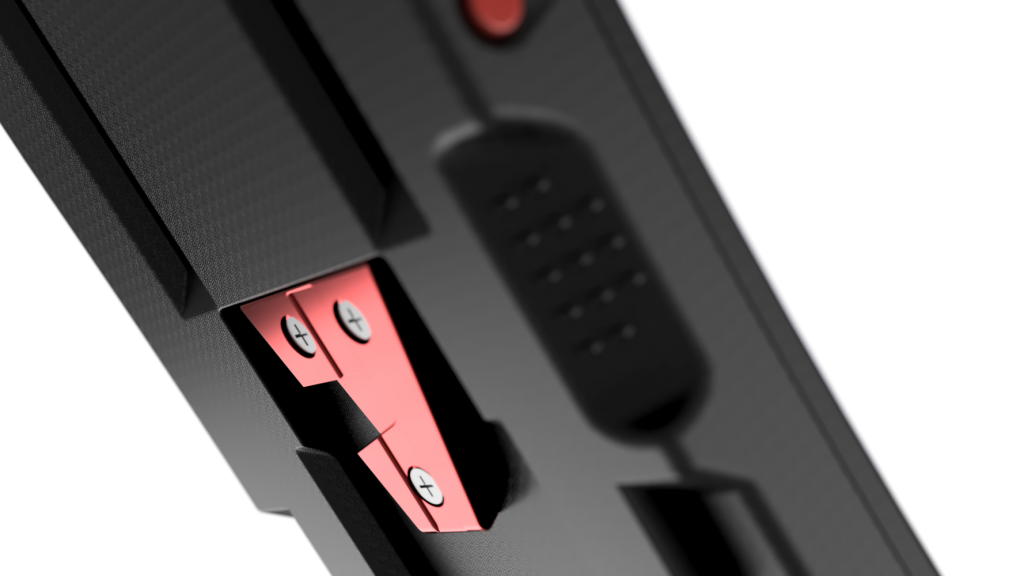

V-Mount Connection Holder
HBP-NPF has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.

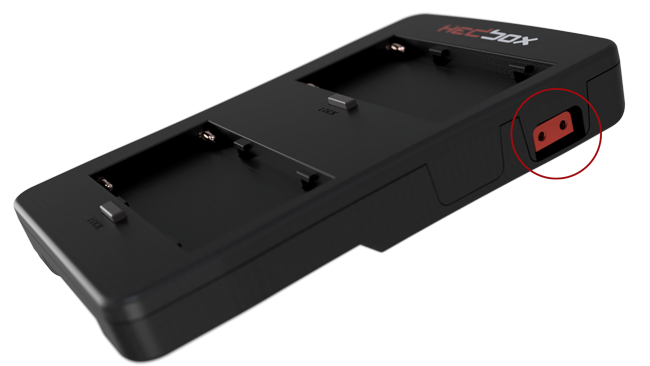

Built-in D-tap Output 14.8V 72W, 6A
A D-tap DC output socket is equipped on the side of the HBP-NPF battery pack. With this external power supply facility, you can connect an on-camera LED light, video monitor, wireless transmitter or digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The max power from the D-tap is 72W, 6A.

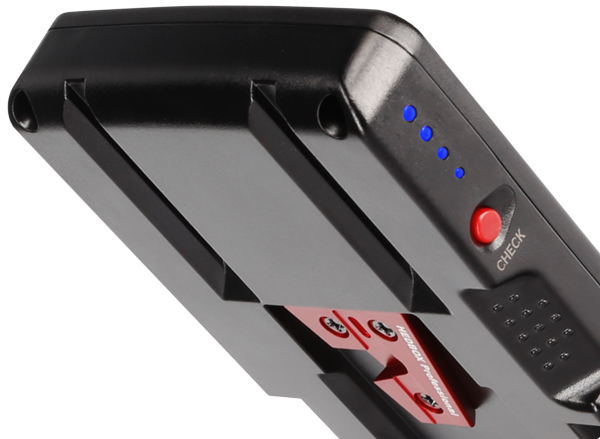

4-LED Power Monitor Indicator
HBP-NPF V-Lock battery converter contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

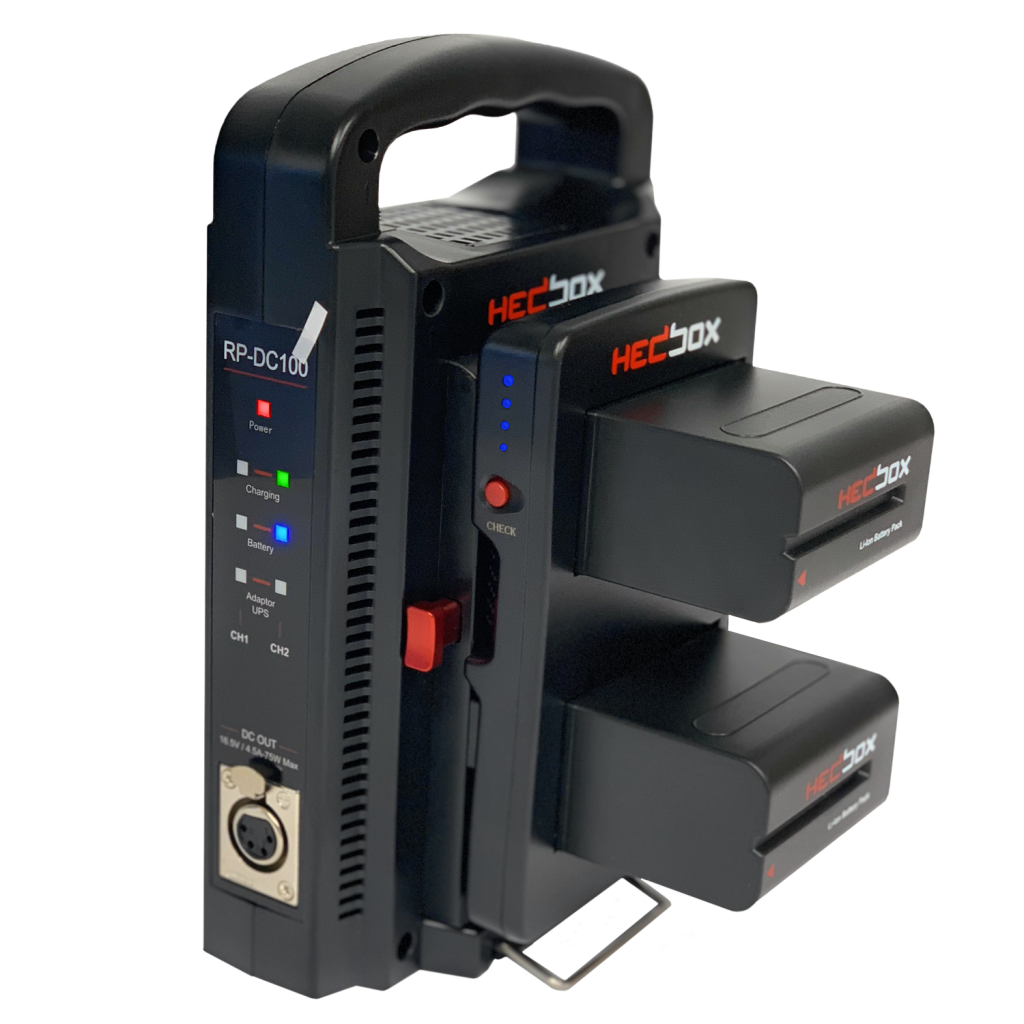

Charging on regular V-lock Charger
HBP-NPF V-Lock battery converter is possible to use like charging station
for your regular Sony NP-F / L battery series.
Simply attach V-Lock battery converter with 2x (two) NP-F /L battery
and the converter will distribute charging power to both batteries simultaneously
With HBP-NPF to V-lock Power Adapter Plate you can use these products:
RP-NPF550 - Pro Battery Pack
RP-NPF770 - Pro Battery Pack
RP-NPF970 - Pro Battery Pack
RP-NPF1000 - Pro Battery Pack
UNIX - V-Lock Power Adapter Plate
UNIX-4X - V-lock Breakaway 50cm Female XLR Power Adapter Plate
UNIX-SO - V-lock Breakaway 50cm Male C-Pin Power Adapter Plate
UNIX-DC - V-lock Breakaway 50cm DC5,2x2.2 Power Adapter Plate
UNIX-HY - V-lock Breakaway 50cm Male Hyrose Power Adapter Plate
UNIX-0B - V-lock Breakaway 50cm FGG.0B.302 Male Power Adapter Plate
UNIX-0BL - V-lock Breakaway 50cm FGG.0B.302 Right Angle Adapter Plate
UNIX-1BL - V-lock Breakaway 50cm FGG.1B.302 Right Angle Adapter Plate
UNIX-1B4 - V-lock Breakaway 50cm FGG.0B.302 Male Power Adapter Plate
UNIX-7V2 - V-lock Breakaway 50cm 7.2V Free Fly End Power Adapter Plate
UNIX-12V - V-lock Breakaway 50cm 12V Free Fly End Power Adapter Plate
UNIX-LPE6 - V-lock Breakaway 50cm Dummy LP-E6 Power Adapter Plate
UNIX-FW50 - V-lock Breakaway 50cm Dummy FW50 Power Adapter Plate
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.
Multiple Protections
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.
No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.
Environmentally-Friendly
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Viewfinder Monitors
Video Monitors
Studio Cameras
Professional Cameras
Panasonic Camcorders
LED Lights
JVC Camcorders
BLACKMAGIC Design
Package includes
Under transport regulation, the HBP-NPF is factory packed in a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.
- 1 x HBP-NPF V-lock NPF Plate
- 1 x User Manual - (English)
- 1 x 2 Year Limited Warranty
