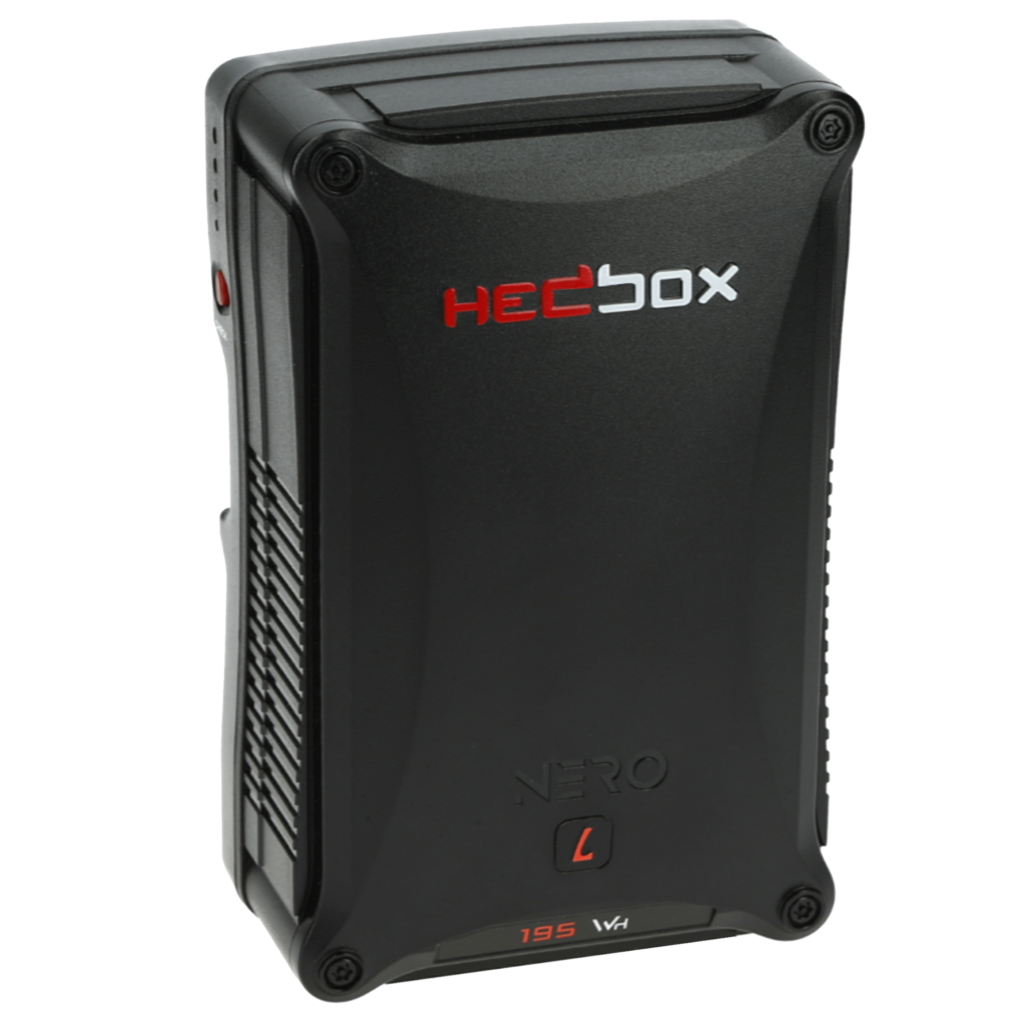

|Model :||NERO L – Professional HIGH LOAD Lithium-Ion Battery Pack|
|Mount Type :||V – Mount ( V-lock holder )|
|Power Meter :||Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )|
|Product Color :||Dark Grey|
|Bat. Cell Model :||LG High Load Stand 18650 x 16|
|Bat. Cell Chemistry :||Lithium-Ion|
|Output Voltage :||14.8V DC|
|Minimum Out Voltage :||10.0V DC ( Auto Power Control )|
|Capacity :||13400 mAh / 195 Wh|
|Maximum Load :||13A / 190W|
|USB Output :||5V, 12W / 2.4A max ( Dust Protection Cover )|
|D-Tap Output :||14.8V, 100W / 6.8A max ( Dust Protection Cover )|
|Internal Protection :||Cells Framing Construction System|
|Maximum Charge :||16.8V / 3.0A|
|Dimensions (WxHxD) :||152 x 96 x 60 mm / 5.98 x 3.78 x 2.36″|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Weight :||970 g / 2.14 lb|
Largest in range, power that last
New V-lock Li-Ion Battery 200 Wh
D-tap & USB Out
The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation.
NERO L represents the Large cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.
NEW Cells Framing Construction System
4-LED Power Monitor Indicator
NERO L contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.
V – Mount Connection Holder
NERO L has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.
Built-in D-Tap and USB Output Socket
Through it’s additional integrated D-Tap DC Power output the NERO L can deliver
14.8V, 148W/10A to all professional devices. An extra USB power output allows the
charging of mobile phones, tablets or other accessories using one single battery.
Cine NERO L Battery can be used with these products:
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.
No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection
Video presentation of product
All the pictures and documents can be used for media promotion.
- MARKETING SUPPORT DOWNLOADVisit online
- NERO L User Manual.pdf (1.51 MB)Download
- HEDBOX-PRO-Battery-Limited-WARRANTY (0.75 MB)Download
- NERO L Free Fall Drop test Report (1.03 MB)Download
- IATA Dangerous Goods Regulations (as of Jan 1st, 2019) (0.16 MB)Download
- MSDS & UN Test Sheet | NERO-L-2019.pdf (1.31 MB)Download
- LI-ION BATTERY PASSENGER AIRCRAFT TRANSPORT RULES (0.58 MB)Download
- IATA-Lithium-battery-guidance-document-2017.pdf (1.13 MB)Download
- IATA-Lithium-Ion-Batteries-Cargo-Transport-2016-Update-III.pdf (0.05 MB)Download
- FAA-SAFO16001-Li-Ion-Batteries-Air-Transport.pdf (0.08 MB)Download
- IATA Li-Ion Battery LATEST INFORMATIONVisit online
