|Model :||NINA Lg – Mini HIGH LOAD Lithium-Ion Battery Pack|
|Mount Type :||Gold – Mount ( 3Pin-lock holder )|
|Power Meter :||OLED Display ( Display’s Percentage and Time of Batt Capacity, Circle count, and Charging status )|
|Display Size :||1.1 Inch / 28mm|
|Output Voltage :||14.8V|
|Bat. Cell Chemistry :||Lithium-Ion|
|Max Output Voltage :||16.8V DC|
|Minimum Out Voltage :||13.0V DC ( Auto Power Control )|
|Capacity :||10050 mAh / 10,05Ah / 148.8 Wh – On AIR Transport Certification|
|Maximum Load :||15A / 250W|
|USB-A Output :||5V/3A、9V/2A、12V/2A (QC2.0/QC3.0/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A etc.protocol)|
|USB-C Input/Output :||25V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A(65W) PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A etc.protocol|
|D-Tap I Input/Output :||Max charge 16.8V / 8A / 135W, Max discharge: 16.8V / 15A / 250W|
|D-Tap II Input/Output :||Max charge 16.8V / 8A / 135W, Max discharge: 16.8V / 15A / 250W|
|Internal Protection :||Cells Framing Construction System|
|Maximum Charge :||16.8V / 8.0A / 135W|
|Dimensions (WxHxD) :||105 x 75 x 68 mm|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Weight :||650 g / 1.43 lb|

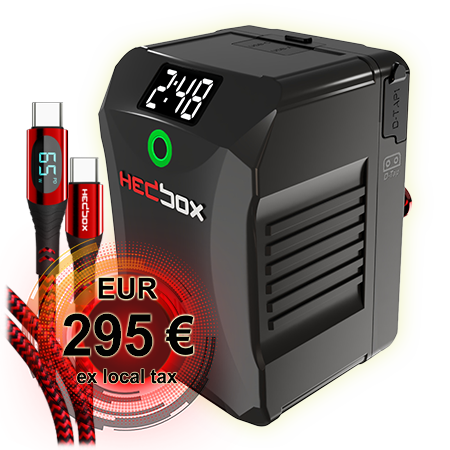

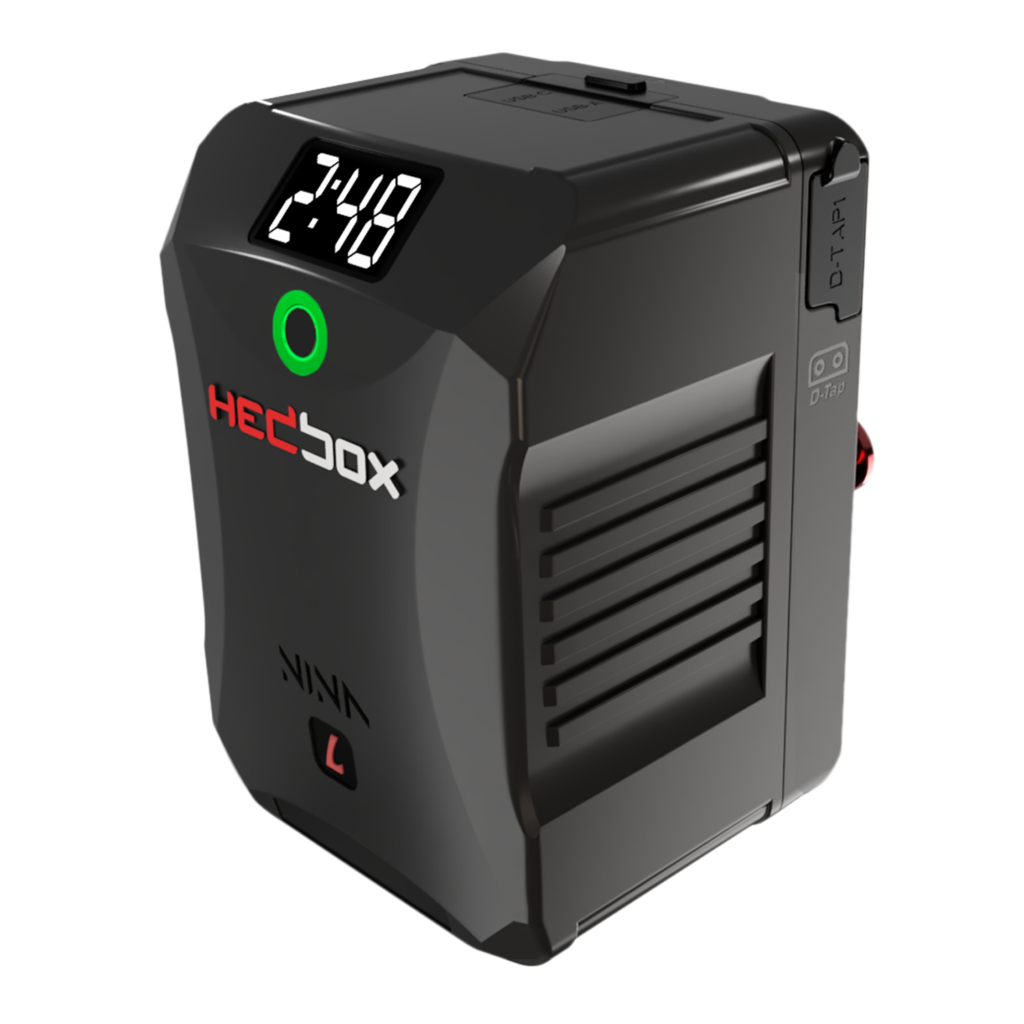

Mini Gold-Mount Battery 150 Wh
2x D-tap & USB-A and USB-C Out
OLED Display with IDR System
The new NINA series of Hedbox stands for High Performance and High Safety Design mini Battery Pack. The new and revolutionary IDR System provides full control and display of the battery status. On the high-contrast OLED Display, the Battery Capacity, Remaining Time, Circle usage, and Charging function are visible during the day and night.
Through its additional 2xD-Tap DC output the NINA can deliver power to all additional accessory devices. An extra USB-A and USB-C power input allows the charging of the battery with regular USB chargers. Also the same can be used as Power output for mobile phones, tablets, or other accessories using one single battery.
Capacity Percentage Display
The OLED Display shows the battery capacity status in percentage (%).
Remaining Time Display
The OLED Display shows the battery capacity remaining time in minutes
Total Usage Display
The OLED Display shows the total usage of the battery lifetime.
The usage is counted per circle (one circle is total charging/discharging).
USB Charging Display
The OLED Display shows the charging process of the battery.
The charging readout is shown as an indication and a percentage.

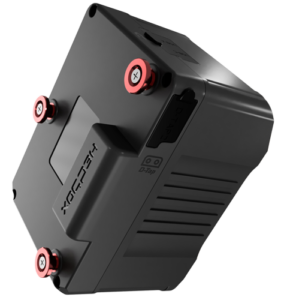

Gold – Mount Connection Holder
NINA Lg has a standard Gold-Mount connection. The mounting pins are made from a special structure of high-quality dur-aluminum. This material enables safe, rugged, and reliable mounting of the battery on all products on which the battery will be used.
Battery Charging OLED Display
During the Battery Charging process, via the USB Charger/cable,
the battery OLED Display shows the real-time charging process.
The readout is visibly shown in the charging indication progress
and the current state of battery capacity status.
The battery Capacity status is count per one percent (1%)
Two D-Tap, Power Out
USB-A and USB-C
Through its additional integration on both sides D-Tap DC Power output.
The NINA Lg battery can deliver two times 16.8V, 135W/ 8A of power.
An extra USB-A power provides 5V/3A , 9V/2A , 12V/2A and another
USB-C can sustain 5V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A (65W)
Both USB outputs support PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A
This allows the charging of mobile phones, tablets, or other accessories using one single battery.
Low Capacity Emergency ALARM
When the battery capacity drops below 20%. The battery IDR emergency ALARM lights up. The strong and visible fleshing IDR ring, (silent mode no buzzer), warns the user that the battery has fallen below 20% capacity. This unique function gives the camera operator enough time to finish the started recording and replace the battery in time.
USB-C LED Cable Included
The cable has an LED display that in real-time show charging power, charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just show charging power, it neither increases nor decrease charging current)
– Cable Lenght: 1.2m / 3.93 ft
– Cable Type: USB-C to USB-C
– Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
– Super fast charging 2.0 and PPS 65W/45W/25W
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
