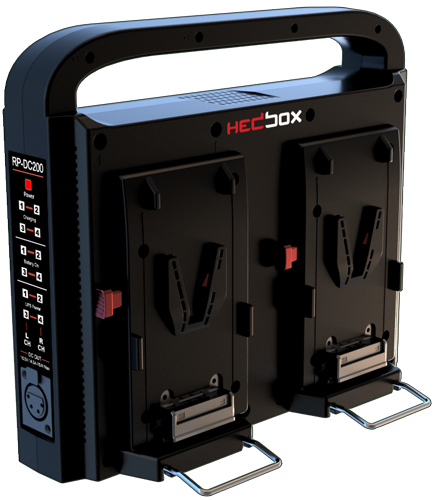

RP-DC200V

4-ch Digital Simultaneous Battery Charger with Power Bank Function

The RP-DC200V is a digital quad battery charger conveniently used for professional V-Mount batteries to simultaneously charge them. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge batteries at the same time saving you both time and money.
Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution, with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries.
It is used to charge the battery from 0% to 80% (RED light ON). When the battery is charged to 80%, impulse voltage charging (GREEN Light ON) takes over until the battery reaches 100%. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

FULL LED Display Screen

LED display provides a clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode of all 4 Channels. The displayed charging mode (Adapter UPS LED Light ON) provides a clear insight into which channel (CH1, CH2, CH3, or CH4) of the power bank mode is active. With a bright and intense light, the readout function is enabled in the dark.

DC Out 16.5V / 4.5A

With a 4-pin XLR female connector on the front panel, the RP-Dc200V charger provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights, and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 14.5V/4.5A, 75W output.

4-ch Sequential Power Mode

Hedbox RP-DC200V offers a 4-channel sequential power mode. It allows you to work with 1, 2, 3, or even 4 batteries in the system. When using a 2-channel battery for power, the system will use the battery in channel 1 first, and then the battery in channel 2 when it is first discharged. If using full power bank mode in all 4-channel batteries, the system uses all 4 batteries in the system, discharging the batteries in sequences 1 / 2 / 3, and finally the last 4th battery. This method provides an uninterrupted power supply without delay.

Charging Technology

Intelligent Charging Systems of RP-DC200V integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries.

It is used to charge the battery from 0% to 80% (RED light ON). When the battery is charged to 80%, impulse voltage charging (GREEN Light ON) takes over until the battery reaches 100%. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

High-Quality Aluminium V-lock release

Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provide up to 10,000 cycles for a V-mount battery on the plate.

Battery Charger RP-DC200V can Charge all V-Mount Li-Ion Battery type like:

NERO S - Pro Battery Pack
NERO M - Pro Battery Pack
NERO L - Pro Battery Pack
NERO XL - Pro Battery Pack

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications



Model :RP-DC200V Intelligent Quad Digital Professional Battery Charger
AC Power In : AC 110 – 240V, 50/60Hz
Battery Mount :V-Lock and V Mount Battery Plate
Power Consumption :Max 85W (Max)
Power Output 1 :DC 16.8V / 3A Single/Dual Chanel / 2.4A Triple/Quad Chanel Charge
Power Output 2 :DC 16.8V / 3A Single/Dual Chanel / 2.4A Triple/Quad Chanel Charge
Power Output 3 :DC 16.8V / 3A Single/Dual Chanel / 2.4A Triple/Quad Chanel Charge
Power Output 4 :DC 16.8V / 3A Single/Dual Chanel / 2.4A Triple/Quad Chanel Charge
DC Power Out :DC 16.5V / 4.5A / 75W (max)
Power Bank Out :DC 16.5V / 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)
Charging Type :Ni-CD , Ni-MH , Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :265  × 103  × 223 mm
Weight :1.68 Kg
Charging Method :RP-DC200V use advanced Constant Current and Impulse Voltage charging Methods



Supported products

Package includes

  • 1x RP-Dc200V Quad Battery Charger
  • 1x RPC-DC4X4 4-Pin XLR Power Cable
  • 1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 1x QR Code Card - User Manual
  • 1 x 2 Year Limited Warranty
