Battery Chargers

HED-DC150V

HED-DC150V

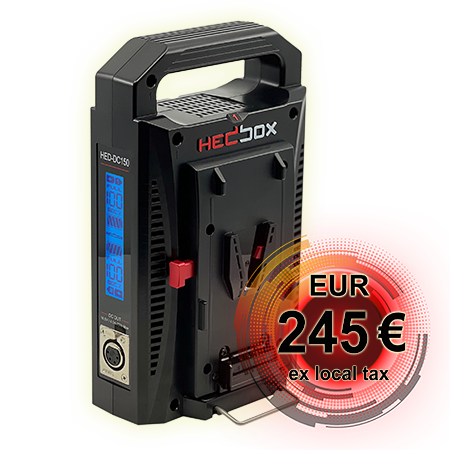

2-ch Digital LCD Simultaneous Battery Charger with Power Bank Function

The HED-DC150V is a Digital LCD Dual battery charger that conveniently charges two professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge two batteries at the same time saving you both time and money. The LCD display with blue backlight illumination provides a clear, accurate, and precise display of power and charging status. Equipped with extra support stands, greater stability is provided when charging only one battery. Using the corresponding Hedbox DC Power Cable RPC-DC4X4 4-pin XLR female to male, the HED-DC150V becomes a powerful power bank station.

LCD Display Screen with Back-light

LCD Display provides a clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. The displayed charging mode provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense blue color light, the readout function is enabled in the dark, giving you the possibility to use the charger at any place and at any time.

Power Station Mode

The HED-DC150V can easily become a very powerful power bank if used with a specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4-pin XLR female to male (included in the box). The power output is DC16.5V, 4.5A / 75W and the capacity depends on the batteries used.



For this application use the cable: RPC-DC4X4 / 4-Pin XLR Male to Female Plug.

High-Quality Aluminium V-lock release

Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provide up to 10,000 cycles for a V-mount battery on the plate.

Charging Technology

Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precise control over the charging process. A pre-charging stage (trickle charge) is used as a safety precaution with high-capacity batteries. The mix of Constant Current and Impulse Voltage (CC/IV) charging mode is the most effective way that HEDBOX technology uses to charge Lithium-Ion Batteries to their full efficiency.

Constant Current & Impulse Voltage

The Constant Current charging method is used to charge the battery from 0% to 80% of their SOC ( State of Charge Capacity). When the battery is charged to 80%, the Impulse Voltage charging takes over until the battery reaches 100% of SOC. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

Integrated locking support stand

The HED-DC150V is equipped with extra support stands making it easy to operate. The support stands to provide extra stability while charging only one battery.

DC Out 16.5V, 4.5A / 75W

With a 4-pin XLR female connector on the front panel, the HED-DC150V provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights, and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 16.5V, 4.5A / 75W output.


Battery Charger HED-DC150V can charge all V-Mount Li-Ion Battery type like:

NERO-S V-Mount Battery
NERO-M V-Mount Battery
NERO-L V-Mount Battery
NERO-LX V-Mount Battery

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications



Model :HED-DC150V Intelligent Dual Digital Professional Battery Charger
AC Power In : AC 110 – 240V , 50/60Hz
Battery Mount :V-Lock and V Mount Battery Plate
Power Consumption :Max 85W
Power Output 1 :DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge
Power Output 2 :DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge
DC Power Out :DC 16.5V , 4.5A / 75W (max)
Power Bank Out :DC 16.5V , 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)
Charging Type :Ni-CD , Ni-MH , Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :124 x 114 x 445 mm
Weight :1.2 Kg
Charging Method :RP-DC150V uses an advanced mix of Constant Current and Impulse Voltage charging Methods



Supported products

Video presentation of product

Package includes

Under transport regulation, the HED-DC150V is factory packed in a cardboard box with internal shock resistance protection. This packaging makes travel and transportation safe on the Sea, Air, and Road.

  • 1 x HED-DC150V LCD Dual Battery Charger
  • 1 x RPC-DC4X4 DC 4Pin XLR Power Cable 2m
  • 1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 1x QR Code Card - User Manual
  • 1 x 2 Year Limited Warranty
  • On-Line Product Registration
1 x HED-DC150V LCD Dual Battery Charger
1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
