| Model : | UNIX V-Mount Adapter Power Plate |
| Battery Mount : | V-Lock Mount |
| D-Tap Power Out 1 : | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| D-Tap Power Out 2 : | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| D-Tap Power Out 3 : | DC 12V ~ 16.8V / 10A / 148W (Max) unregulated |
| USB Output : | DC 5V / 2.1A /10W (Max) |
| Breakaway DC Cable : | NOT included |
| V-lock release : | High Quality Aluminium Alloy |
| Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
| Dimensions (WxDxH) : | 146 x 102 x 26 mm |
| Weight : | 185 g |
| Mounting : | Multiple mounting holes for universal camera connection |
UNIX C
V-Mount Battery Power Plate
Aluminium V-lock release
USB-C In/Out PD 3.0 65W
3x D-Tap In/Out 14.4v / 100W / 7A
The new Hedbox UNIX C Cine Professional V-Mount Battery Power Plate is the ideal choice for video and photo professionals. Designed for use in both photography and videography, the UNIX C allows users to power multiple camera accessories—such as LCD monitors, LED lights, data recorders, digital video transmitters, follow focus systems, and other devices—from a single, reliable, and safe source.
The new USB-C PD 3.0 power port enables bidirectional power usage: it can charge the mounted battery using any available USB-C PD 3.0 charger or provide power from the battery to external USB-C devices connected to the UNIX C.
3 x D-Tap DC Power Output
Unix C provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.
Build-in USB-C PD3.0 / 65W Power In/Out Socket
The USB-C PD 3.0 / 65 W output can power any external USB-C device. This allows the Unix C V-Mount plate to function like a portable power station, capable of charging smartphones, tablets, or any other devices compatible with USB-C PD 3.0. Additionally, the input options allow a mounted V-Mount battery to be charged using any available USB-C PD 3.0 charger.
Multiple Mounting holes for connection
With multiple mounting holes, (4 x M3x12 screws provided) Unix C is able to mount on to any device or camera connection.
High Quality AluminiumV-lock release
Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.
NERO - Pro Battery Packs

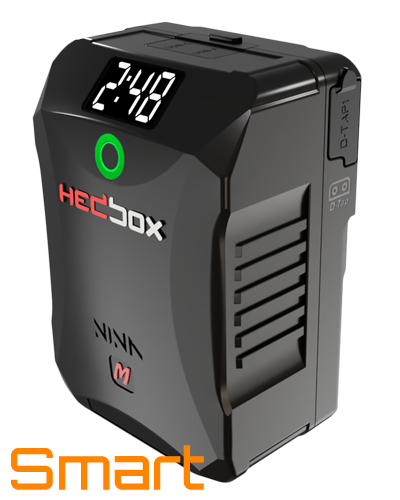

NINA M - Smart Mini Battery Pack

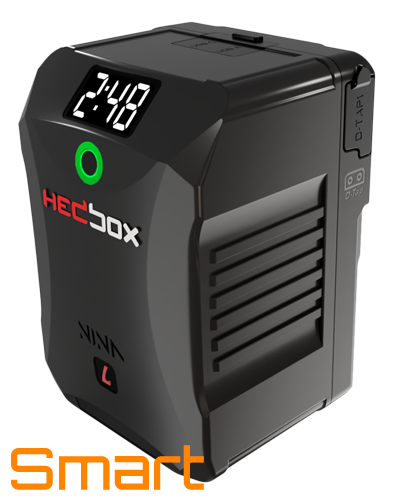

NINA L - Smart Mini Battery Pack
HBP-NPF - NPF Battery Converter Plate
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
Eco-Green Consistency
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
Worldwide Distribution
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Package includes
Under transport regulation, UNIX-FX9 V-lock Plate is factory packed in a cardboard box with internal shock-resistance protection. This kind of packaging makes it travel and transportation safety for the Sea, Air, and Road.
- 1 x UNIX II V-Mount Plate
- 1 x Set Screw M3x12 ( 4pcs)
- 1x QR Code Card - User Manual
- 1 x 2 Year Limited Warranty
- On-Line Product Registration
1 x UNIX II V-Mount Plate
1 x Set Screw M3x12 ( 4pcs)
