HOLD Rod Clamp

Support you can trust

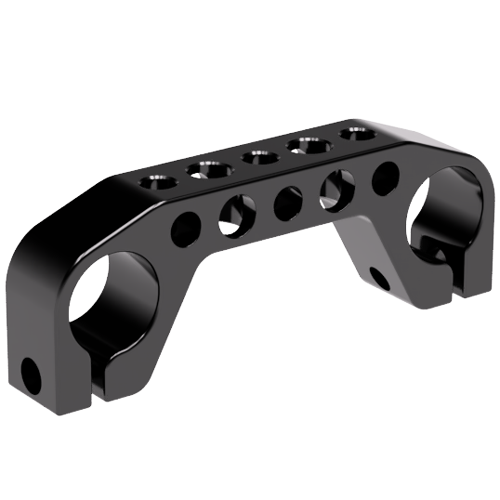

15mm RailBlock Rod Clamp

The HEDBOX HOLD Rod Clamp is anodized precision-machined aluminum accessory for mounting cheese plates on to the camera rig’s 15mm LWS rod system. Constructed from dur-aluminum alloy HOLD Rod Clamp represent high quality product that enables you to mount a separately available battery cheese plate on the camera rig’s 15mm LWS rod system. HOLD Rod Clamp is specially designed for HOLD Cheese Plate. Thanks to various threaded holes positions, this Rod Clamp is compatible with various mounting plates.







Multiple 1/4″- 20
Mounting Threads

HEDBOX Rod ClampHOLD provides an option for mounting a Battery Cheese Plate onto your camera rig’s 15mm LWS rod system. Incorporating multiple 1/4″-20 threads, the HOLD Rod Clamp is compatible with most battery plates.





Side and Straight 1/4″- 20
Mounting Threads

HEDBOX HOLD ROD Clamp provides an option for mounting Camera accessories, thanks to multiple 1/4″- 20 Mounting Threads incorporated on the side and top of the Rod Clamp.





Bottom & Top 1/4″- 20
Mounting Threads

With 5 of 1/4″- 20 Mounting Threads on the bottom and 3 on the top HEDBOX HOLD provides an option for mounting 15mm rod clamp that can be used onto your camera rig’s 15mm LWS rod system.


HOLD Rod Clamp

Find a store near you

HOLD - Battery Mounting Cheese Plate
UNIX - V-Mount Power Adapter Plate
UNIX-BM - V-Mount Power Adapter Plate
UNIX-DC - V-Mount Power Adapter Plate

High Quality Li-Ion Cell

Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.

Multiple Protections

The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.

No Memory Effect

Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.

Environmentally-Friendly

Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

 Model : HOLD Rod Clamp 15mm Rod Clamp system with knobs
 Rod Diameter : 15mm
 Rod Distance : 60mm
 Right Knob : 1 x 27mm Red Anodizing Color M5 screws
 Left Knob : 1 x 27mm Red Anodizing Color M5 screws
 Plate Mounting Top : 1/4″-20 x 3 threaded holes
 Plate Mounting Side : 1/4″-20 x 3 threaded holes
 Material : High Quality Dur-Aluminium Alloy
 Surface Treatment : Sand Blasting – Deep Anodizing
Dimensions (WxDxH) : 4.33 x 0.55 x 1.12″ / 110 x 14 x 28.5 mm
Weight : 1.95 oz / 55 g
Mounting : Multiple mounting holes for universal Cheese Plate connection

Supported products

Package includes

Under transport regulation, HOLD Aluminium Rod Clamp is factory packed in a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.

  • 1 x ROD Clamp
  • 2 x Red Color Rod Clamp Knobs
  • 1 x 3/16" HEX Key
  • 2 x 1/4"-20 Screw length 1/4"
  • 2 x 1/4"-20 Screw length 3/4"
1 x ROD Clamp
2 x Red Color Rod Clamp Knobs
1 x 3/16" HEX Key
2 x 1/4"-20 Screw length 1/4"
2 x 1/4"-20 Screw length 3/4"
