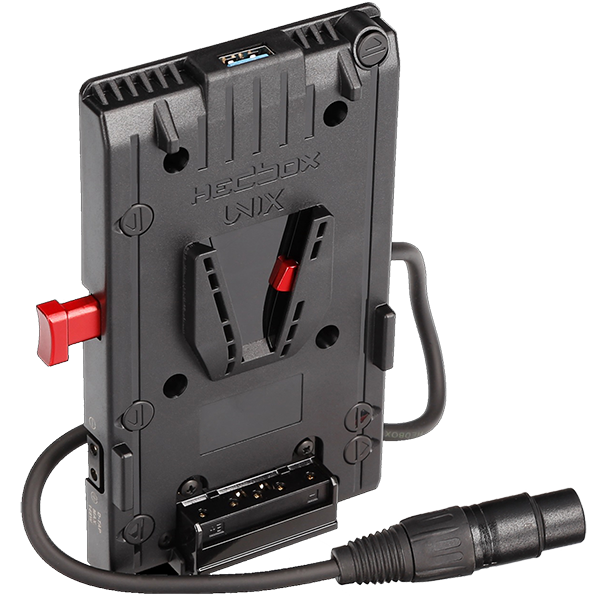

Power V-lock Plate

UNIX-4X





Supplied Breakaway 50cm DC Cable with 4-Pin XLR Female Connector

With an installed breakaway DC 12V/2. 1A/25W power cable, UNIX-12V can be used to power various cameras and devices in the video and photo market. The breakaway cable is a 50cm long, standard 4-pin XLR Female connector.







High Quality AluminiumV-lock release

Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.





3 x D-Tap DC Power Output

Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.





Multiple Mounting holes for universal camera connection

With multiple mounting holes, (4 x M3 x 12 screws provided) Unix is able to mount on to any device or camera connection.







Build-in USB 5V / 2.1A Power Out Socket

The USB 5V/2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.






UNIX-4X

Buy this product!

Find a store near you

With UNIX you can use these products:

PB-D100V - Pro Battery Pack
PB-D150V - Pro Battery Pack
PB-D200V - Pro Battery Pack
HBP-NPF - NPF Battery Converter Plate

High Quality Li-Ion Cell

Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.

Multiple Protections

The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.

No Memory Effect

Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.

Environmentally-Friendly

Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :UNIX-4X V-Mount Adapter Power Plate
Battery Mount :V-Lock Mount
D-Tap Power Out 1 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 2 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 3 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
USB Output :DC 5V / 2.1A /10W (Max)
Breakaway DC Cable :DC 12V ~ 16.8V / 10A / 148W (Max) 50cm (length)/ Unregulated 4-Pin XLR Female Connector
V-lock release : High Quality Aluminium Alloy
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :146 x 102 x 26 mm
Weight :185 g
Mounting :Multiple mounting holes for universal camera connection

Supported products

ATOMOS Products
JVC Camcorders
LED Lights
Panasonic Camcorders
Professional Cameras
SONY Camcorders
Studio Cameras
Video Monitors
Video Recorders
Viewfinder Monitors

Package includes

Under transport regulation, UNIX V-lock Plate is factory packed in a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.

  • 1 x UNIX-4X V-Mount Plate
  • 1 x Set Screw M3x12 ( 4pcs)
  • 1 x User Manual - (English)
  • 1 x 2 Year Limited Warranty
1 x UNIX-4X V-Mount Plate
1 x Set Screw M3x12 ( 4pcs)
1 x User Manual - (English)
