|Model :||UNIX-DC V-Mount Adapter Power Plate|
|Battery Mount :||V-Lock Mount|
|D-Tap Power Out 1 :||DC 12V ~ 16.8V / 10A / 148W (Max) unregulated|
|D-Tap Power Out 2 :||DC 12V ~ 16.8V / 10A / 148W (Max) unregulated|
|D-Tap Power Out 3 :||DC 12V ~ 16.8V / 10A / 148W (Max) unregulated|
|USB Output :||DC 5V / 2.1A /10W (Max)|
|Breakaway DC Cable :||DC 12V / 2.1A / 25W (Max) 50cm (length)/ Regulated DC 5.5×2.1 Jack|
|V-lock release :||High Quality Aluminium Alloy|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Dimensions (WxDxH) :||146 x 102 x 26 mm|
|Weight :||185 g|
|Mounting :||Multiple mounting holes for universal camera connection|

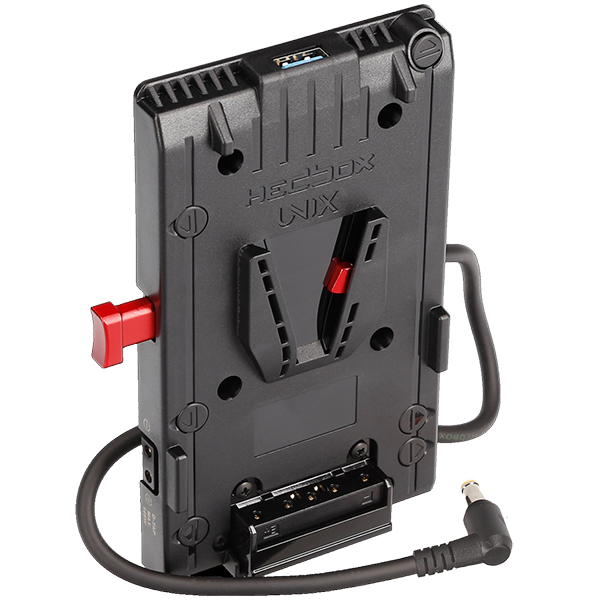

Supplied Breakaway 50cm DC Cable with DC5.5×2.1 Jack Connector
With an installed breakaway DC 12V power cable, UNIX-DC can be used to power various cameras and devices in the video and photo market. The breakaway cable is a 50cm long, with standard DC5.5×2.1 Jack connector.
High Quality AluminiumV-lock release
Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.
3 x D-Tap DC Power Output
Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.
Multiple Mounting holes for universal camera connection
With multiple mounting holes, (4 x M3 x 12 screws provided) Unix is able to mount on to any device or camera connection.
Build-in USB 5V / 2.1A Power Out Socket
The USB 5V/2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.
Metal Back Panel Support
With full Metal Back panel, UNIX body have durable and strong support. This provides a strong and firm connection between Camera or other electronic devices and UNIX plate itself.
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
PRO Batery Packs
Under transport regulation, UNIX V-lock Plate is factory packed in acardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.
- 1 x UNIX-DC V-Mount Plate
- 1 x Set Screw M3x12 ( 4pcs)
- 1 x User Manual - (English)
- 1 x 2 Year Limited Warranty
1 x UNIX-DC V-Mount Plate
1 x Set Screw M3x12 ( 4pcs)
