| Model : | NERO S – Professional HIGH LOAD Lithium-Ion Battery Pack |
| Mount Type : | V – Mount ( V-lock holder ) |
| Power Meter : | Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity ) |
| Product Color : | Dark Grey |
| Bat. Cell Model : | LG High Load Stand 18650 x 8 |
| Bat. Cell Chemistry : | Lithium-Ion |
| Output Voltage : | 14.8V DC |
| Minimum Out Voltage : | 10.0V DC ( Auto Power Control ) |
| Capacity : | 6700 mAh / 98 Wh – On AIR Transport Certification |
| Maximum Load : | 10A / 145W |
| USB Output : | 5V, 12W / 2.4A max ( Dust Protection Cover ) |
| D-Tap Output : | 14.8V, 100W / 6.8A max ( Dust Protection Cover ) |
| Internal Protection : | Cells Framing Construction System |
| Maximum Charge : | 16.8V / 3.0A |
| Dimensions (WxHxD) : | 152 x 96 x 41 mm / 5.98 x 3.78 x 1.61″ |
| Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
| Weight : | 560 g / 1.23 lb |
Cine & Pro Battery

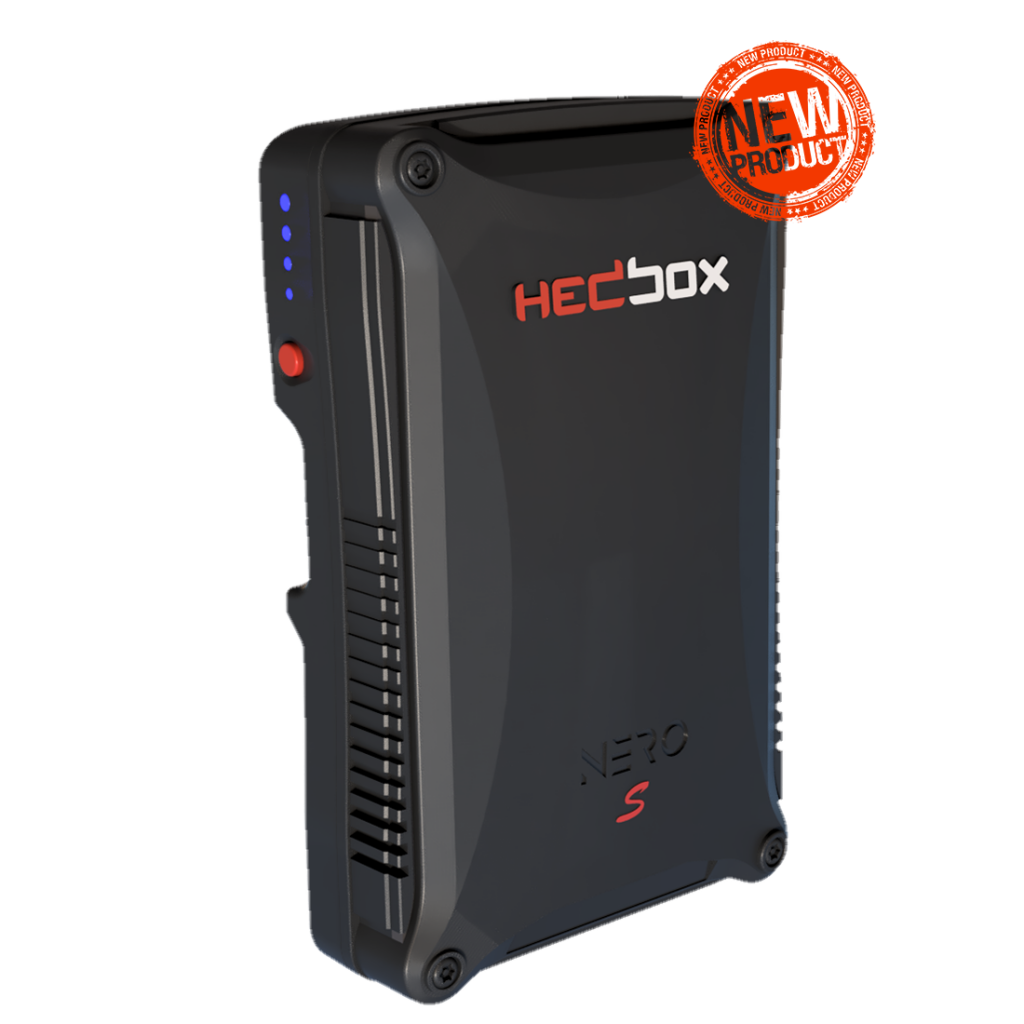

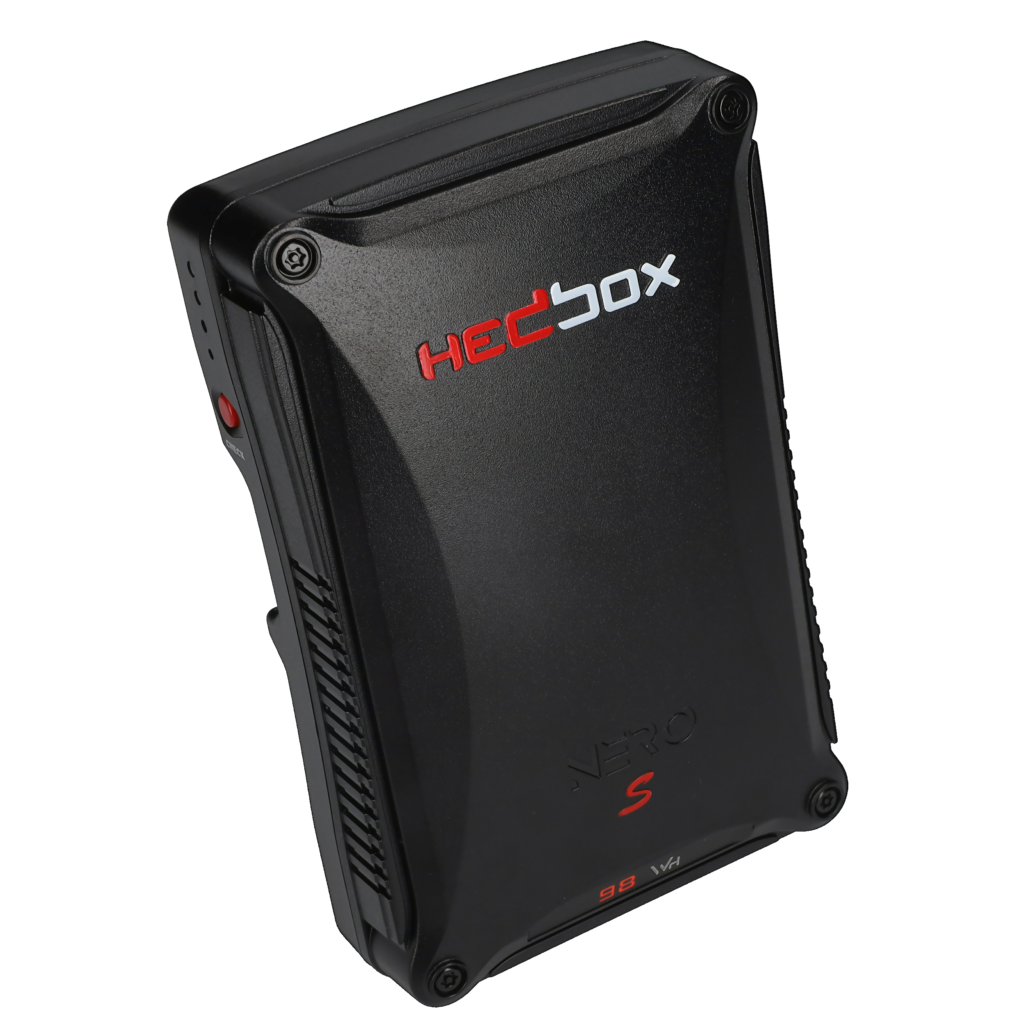

NERO S
NERO S
Smallest in range but powerful enough
New V-lock Li-Ion Battery 98.85 Wh
D-tap & USB Out
The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation.
NERO S represents the smallest cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.
NEW Cells Framing Construction System
NERO use NEW and revolutionary Cells Framing Construction System, that provide extra security and stability to the inner battery cells. With this new advance system NERO is much more safe for transportation and daily operational use, compering to all other Battery Brands.
4-LED Power Monitor Indicator
NERO S contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

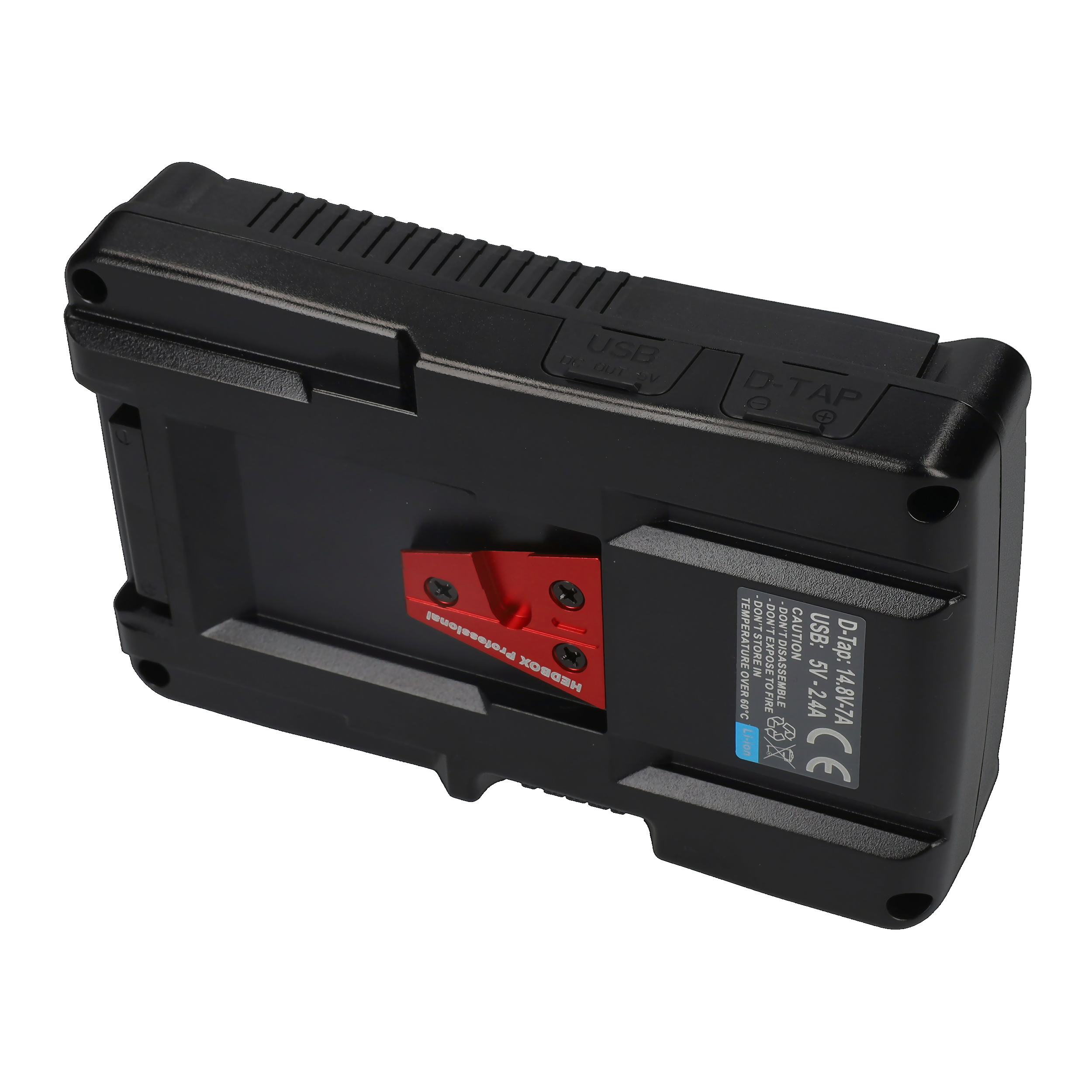

V – Mount Connection Holder
NERO S has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.
Built-in D-Tap and USB Output Socket
Through it’s additional integrated D-Tap DC Power output the NERO S can deliver
14.8V, 88W/6A to all professional devices. An extra USB power output allows the
charging of mobile phones, tablets or other accessories using one single battery.
Cine NERO S Battery can be used with these products:
RP-DC80 - charger
RPC-DT - cable
RP-DC100V - charger
UNIX - V-Lock Power Adapter Plate
UNIX-4X - V-lock Breakaway 50cm Female XLR Power Adapter Plate
UNIX-SO - V-lock Breakaway 50cm Male C-Pin Power Adapter Plate
UNIX-DC - V-lock Breakaway 50cm DC5,2x2.2 Power Adapter Plate
UNIX-HY - V-lock Breakaway 50cm Male Hyrose Power Adapter Plate
UNIX-0B - V-lock Breakaway 50cm FGG.0B.302 Male Power Adapter Plate
UNIX-0BL - V-lock Breakaway 50cm FGG.0B.302 Right Angle Adapter Plate
UNIX-1BL - V-lock Breakaway 50cm FGG.1B.302 Right Angle Adapter Plate
UNIX-1B4 - V-lock Breakaway 50cm FGG.0B.302 Male Power Adapter Plate
UNIX-7V2 - V-lock Breakaway 50cm 7.2V Free Fly End Power Adapter Plate
UNIX-12V - V-lock Breakaway 50cm 12V Free Fly End Power Adapter Plate
UNIX-LPE6 - V-lock Breakaway 50cm Dummy LP-E6 Power Adapter Plate
UNIX-FW50 - V-lock Breakaway 50cm Dummy FW50 Power Adapter Plate
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.
Multiple Protections
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.
No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.
Environmentally-Friendly
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection
Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you
Tech specifications
Supported products
Video presentation of product
Package includes
Under the FAA, IATA, PHMSA and IMDG regulation, the NERO S is factory packed in an anti-static plastic bag and put in to a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.
- 1 x NERO S BATTERY PACK
- 1 x User Manual - (English)
- 2 Year Limited Warranty
