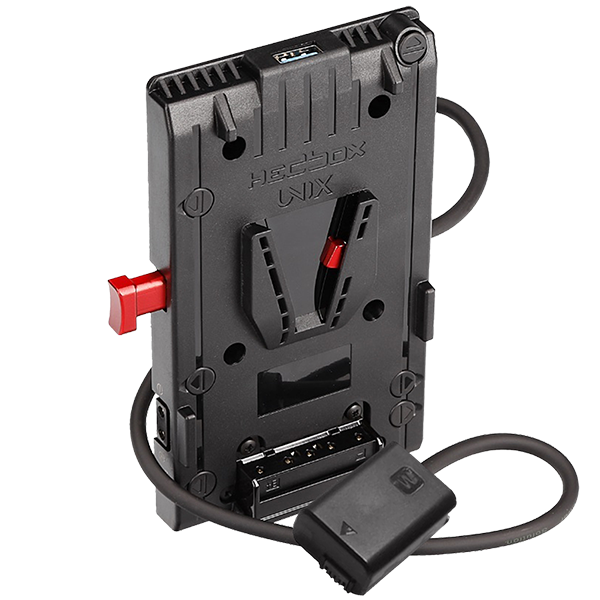

UNIX-FW50
Professional Cine Battery Plate
for use on Pro V-Lock Battery Packs









Supplied Breakaway 50cm DC Cable with FW50 dummy housing

With installed breakaway DC 7.2V regulated power cable, UNIX-FW50 can be used to power any Sony Alpha Cameras. Connect your select Sony camera to the UNIX-FW50 with the FW50 Dummy Battery Coupler. This coupler fits inside your camera’s battery compartment, replacing the standard NP-FW50-type battery pack with a longer, more constant power supply.







High Quality AluminiumV-lock release

Adopting technology to use high quality aluminium alloy V-lock release, we managed to provide up to 10.000 cycles of lock and unlock V-mount Battery on the UNIX plate.





3 x D-Tap DC Power Output

UNIX provide 3 x D-Tap 14.8V DC Power Output. That allows extra powering Cameras, on board Recorders, LED Lights, Monitors, Remote Follow Focus, Wireless Transition Systems ect.





Multiple Mounting holes for universal camera connection

With multiple mounting holes, and supplied 4 pieces of M3x12 screw in the box
UNIX is able to be mounted to any devices or Camera connections.







Build-in USB 5V / 2.1A Power Out Socket

To Power external Electronic Devices that can be powered with USB Power, we designed the USB 5V/2.1A Output. With this function you can use UNIX V-lock Plate like Power Station to charge your Cell Phone or Pad, or any other Electronic Devices that can be powered with USB 5V Power..






UNIX-FW50

Buy this product!

Find a store near you

With UNIX you can use these products:

PB-D100V - Pro Battery Pack
PB-D100V - Pro Battery Pack
PB-D150V - Pro Battery Pack
PB-D150V - Pro Battery Pack
PB-D200V - Pro Battery Pack
PB-D200V - Pro Battery Pack

High Quality Li-Ion Cell

Latest Samsung and LG Lithium -Ion Battery cells model 18650 that are used in HEDBOX Battery Pack, provide no Memory Effect, High Efficiency, Compact and Light – Weight.

Multiple Protection

The Circuit of the Battery Pack has Multiple Protection, of Abnormal Current Protection, Voltage Protection, Short Circuit Protection and Overheating Temperature Protection. This allows the Battery Pack longer Operation life and safer use for Professional purposes.

No Memory Effect

HEDBOX Battery Packs provides the Advantages of Lithium-Ion, meaning it can be charged or discharged at anytime without developing Memory Effect. This means the Battery never loses its ability to hold a Full Charge.

Environmentally-Friendly

HEDBOX Battery Packs are fully in compliance with European Union RoHS regulations (Restriction Of Hazardous Substances) and are 100% free of Lead, Cadmium and Mercury, where HEDBOX products take part in active protecting of the environment and preserving the highest standards of environmental protection.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :UNIX-FW50 V-Mount Adapter Power Plate
Battery Mount :V-Lock Mount
D-Tap Power Out 1 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 2 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 3 :DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
USB Output :DC 5V / 2.1A /10W (Max)
Breakaway DC Cable :DC 7.2V / 2.1A / 15W (Max) 50cm (length)/ Regulated Sony NP-FW50 Dummy Housing
V-lock release : High Quality Aluminium Alloy
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :146 x 102 x 26 mm
Weight :185 g
Mounting :Multiple mounting holes for universal camera connection

Supported products

SONY-ALPHA-A5000
SONY-ALPHA-A5100
SONY-ALPHA-A6000
SONY-ALPHA-A6300
SONY-ALPHA-A6500
SONY-ALPHA-A7-II
SONY-ALPHA-A7R-II
SONY-ALPHA-A7S
SONY-ALPHA-A9
SONY-ALPHA-A99-II

Package includes

Under transport regulation, UNIX V-lock Plate is factory packed in the cardboard box with internal shock resistance protection. This kind of packaging make it travel and transportation safe for Sea, Air and Road.

  • 1 x UNIX-FW50 V-Mount Plate
  • 1 x Set Screw M3x12 ( 4pcs)
  • 1 x User Manual - (English)
  • 1 x 2 Year Limited Warranty
1 x UNIX-FW50 V-Mount Plate
1 x Set Screw M3x12 ( 4pcs)
1 x User Manual - (English)
