Model : | NERO XL – Professional HIGH LOAD Lithium-Ion Battery Pack |
Mount Type : | V – Mount ( V-lock holder ) |
Power Meter : | Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity ) |
Product Color : | Dark Grey |
Bat. Cell Model : | LG High Load Stand 18650 x 24 |
Bat. Cell Chemistry : | Lithium-Ion |
Output Voltage : | 14.8V DC |
Minimum Out Voltage : | 10.0V DC ( Auto Power Control ) |
Capacity : | 20300 mAh / 300 Wh |
Maximum Load : | 15A / 220W |
USB Output : | 5V, 12W / 2.4A max ( Dust Protection Cover ) |
D-Tap Output : | 14.8V, 100W / 6.8A max ( Dust Protection Cover ) dual orientation |
Internal Protection : | Cells Framing Construction System |
Maximum Charge : | 16.8V / 5A (Max) |
Dimensions (WxHxD) : | 152 x 96 x 78 mm / 5.98 x 3.78 x 3.07″ |
Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
Weight : | 1.50 Kg / 3.30 lb |

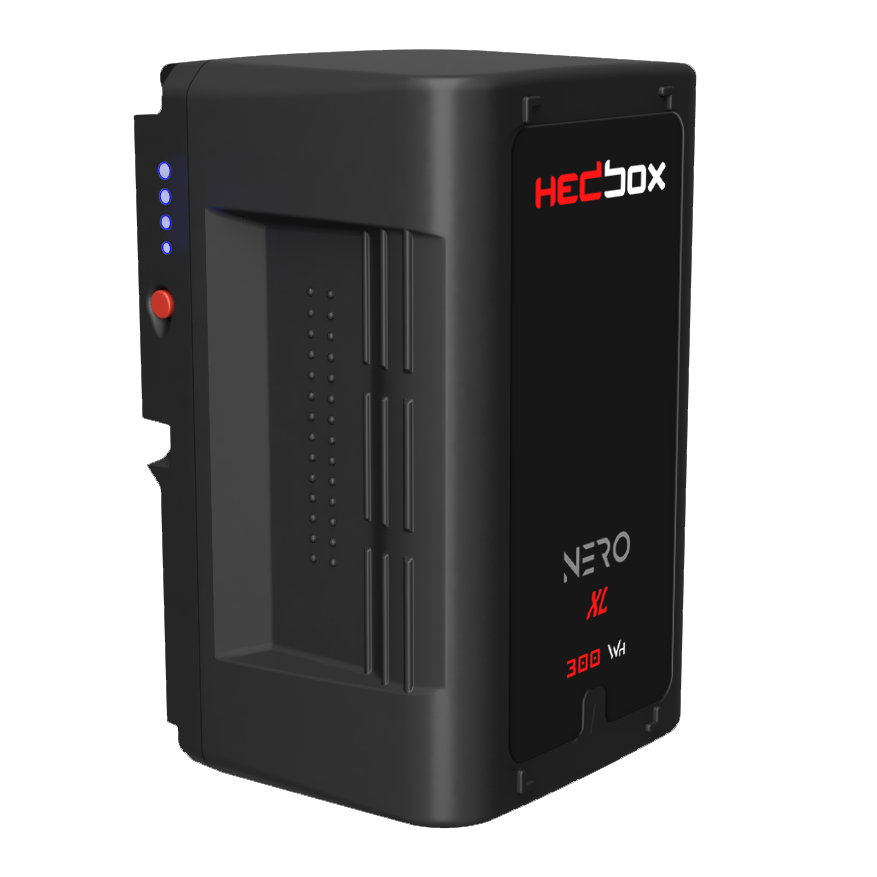

NERO XL

NERO XL
Power you can trust
New V-lock Li-Ion Battery 300 Wh
D-tap & USB Out
The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation.
NERO XL represents the Super High Capacity cine V-lock Battery in the NERO family range. Through it’s additional dual orientation D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.

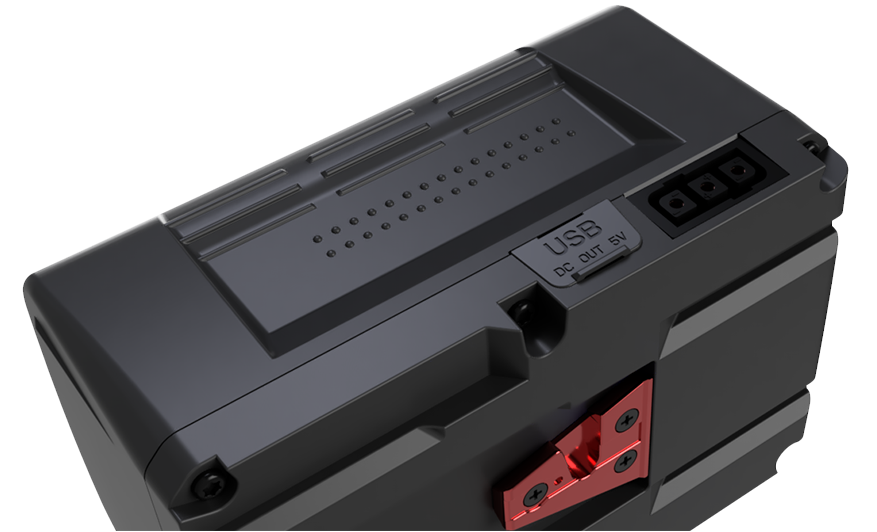

Built-in Dual Orientation D-Tap and USB Output Socket
Through it’s additional integrated Dual orientation D-Tap DC Power output the NERO XL can deliver 14.8V, 148W/10A to all professional devices. Dual orientation function provide D-Tap connector twofold use. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery.

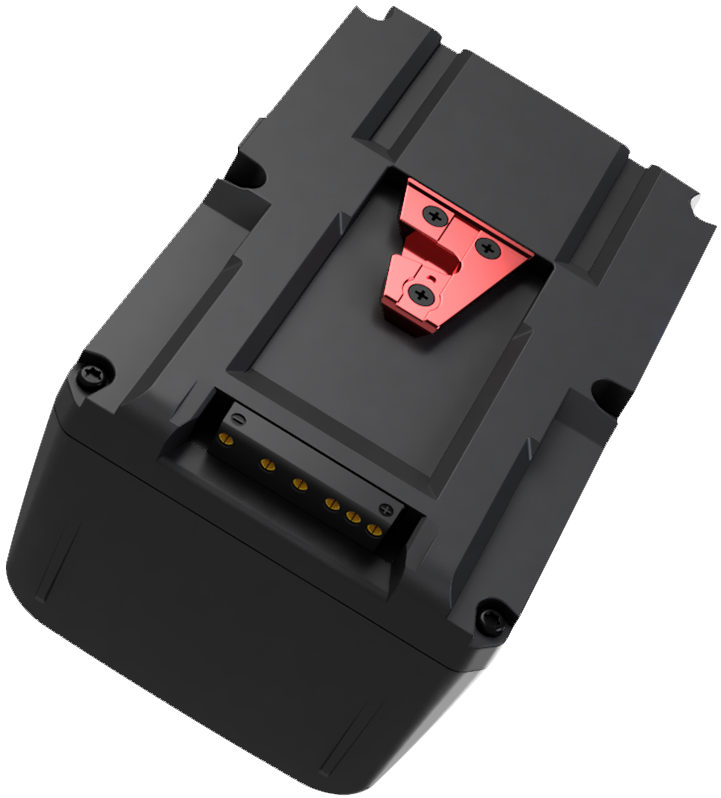

V – Mount Connection Holder
NERO XL has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.

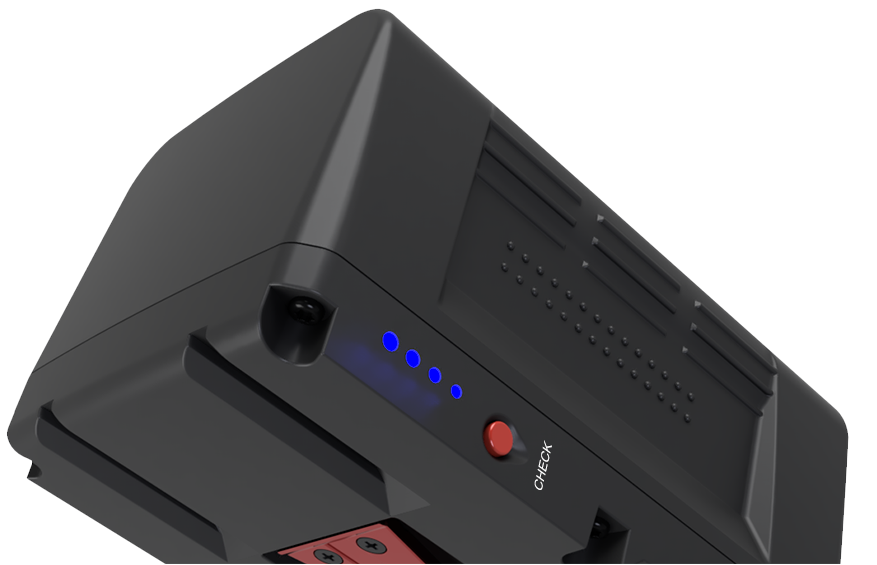

4-LED Power Monitor Indicator
NERO XL contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.

Multiple Protections
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.

No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.

Environmentally-Friendly
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection

Tech specifications
Supported products
Package includes
Under the FAA, IATA, PHMSA and IMDG regulation, the NERO XL is factory packed in an anti-static plastic bag and put in to a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.
- 1 x NERO XL BATTERY PACK
- 1 x User Manual - (English)
- 2 Year Limited Warranty
Press kit
All the pictures and documents can be used for media promotion.
- MARKETING SUPPORT DOWNLOADVisit online
- NERO XL User Manual.pdf (1.13 MB)Download
- HEDBOX-PRO-Battery-Limited-WARRANTY (0.75 MB)Download
- IATA Dangerous Goods Regulations (as of Jan 1st, 2019) (0.16 MB)Download
- LI-ION BATTERY PASSENGER AIRCRAFT TRANSPORT RULES (0.58 MB)Download
- IATA-Lithium-battery-guidance-document-2017.pdf (1.13 MB)Download
- IATA-Lithium-Ion-Batteries-Cargo-Transport-2016-Update-III.pdf (0.05 MB)Download
- FAA-SAFO16001-Li-Ion-Batteries-Air-Transport.pdf (0.08 MB)Download
- IATA Li-Ion Battery LATEST INFORMATIONVisit online
