|Model :||NERO SX – Professional HIGH LOAD Lithium-Ion Battery Pack|
|Mount Type :||V – Mount RED Cameras Compatible ( V-lock holder )|
|Power Meter :||Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )|
|Product Color :||Dark Grey|
|Bat. Cell Model :||LG High Load Stand 18650 x 8|
|Bat. Cell Chemistry :||Lithium-Ion|
|Output Voltage :||14.8V DC|
|Minimum Out Voltage :||10.0V DC ( Auto Power Control )|
|Capacity :||6700 mAh / 98 Wh – On AIR Transport Certification|
|Maximum Load :||10A / 145W|
|USB Output :||5V, 12W / 2.4A max ( Dust Protection Cover )|
|D-Tap Output :||14.8V, 100W / 6.8A max ( Dust Protection Cover )|
|Internal Protection :||Cells Framing Construction System|
|Maximum Charge :||16.8V / 3.0A|
|Dimensions (WxHxD) :||152 x 96 x 41 mm / 5.98 x 3.78 x 1.61″|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Weight :||560 g / 1.23 lb|

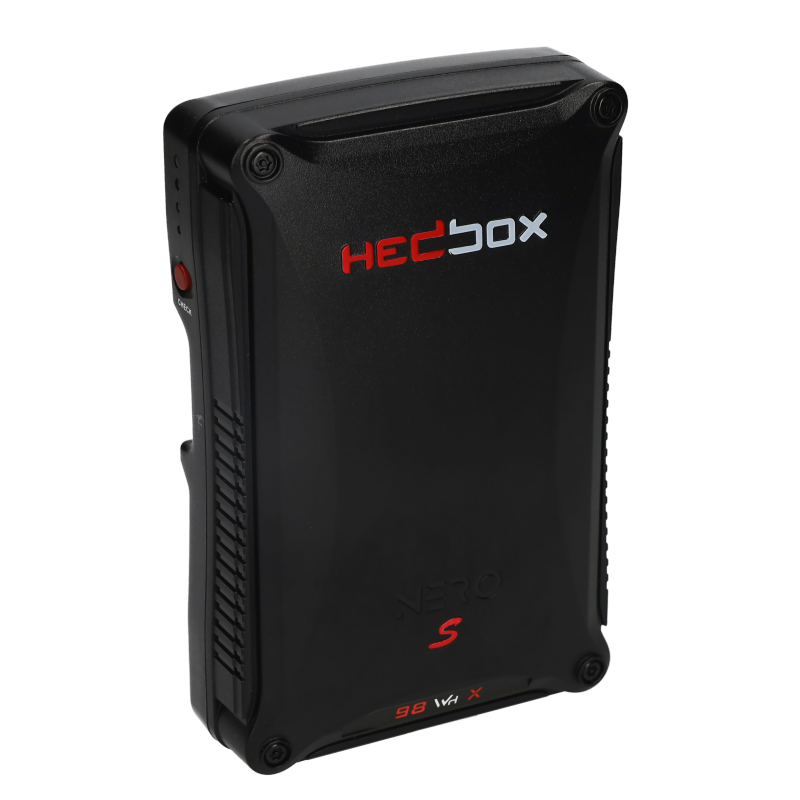

NERO SX (98.85Wh)
Smallest in the range designed for RED
The new NERO SX V-Mount battery with High Performance and high safety designed specially for RED Cameras. The NEW and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.
Compared to all the other Battery Brands this new advanced system not only makes the NERO batteries much safer for daily professional use but also for transportation.
NERO SX represents the smallest cine V-lock Battery in the NERO family range that is fully compatible with all RED Family Cameras. Through it’s additional D-Tap DC output the NERO SX can deliver power to all professional devices. An extra USB power output allows powering of all devices that need DC 5V DC.

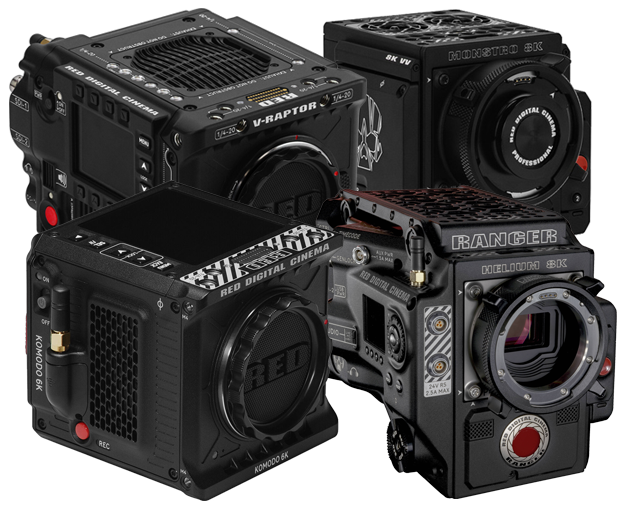

RED Cameras Compatibility
NEW Cells Framing Construction System

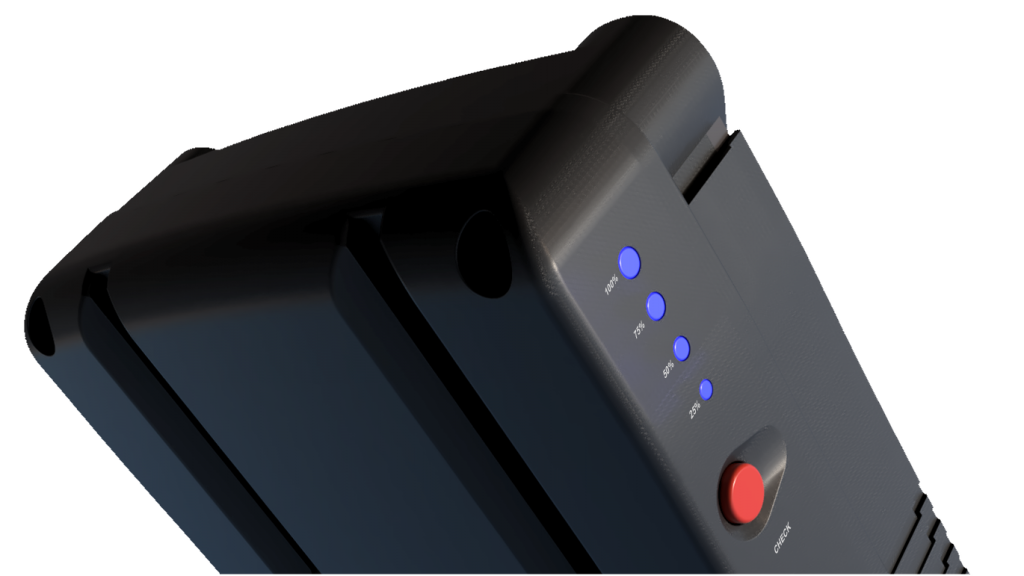

4-LED Power Monitor Indicator
NERO SX contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

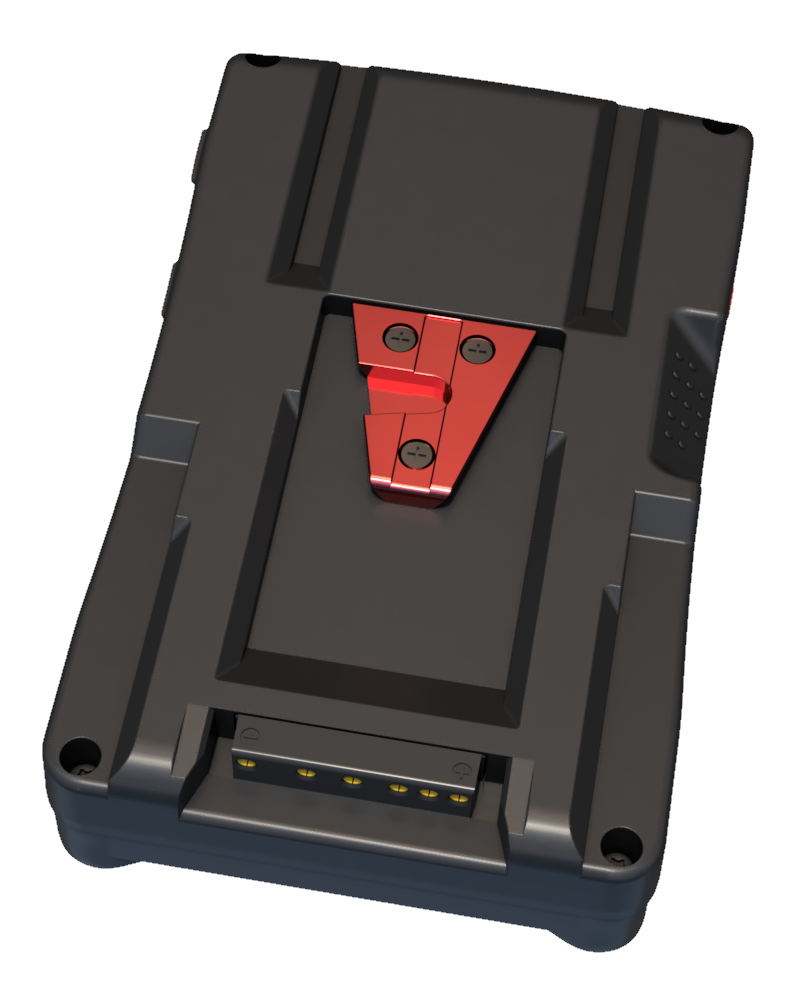

V – Mount Connection Holder
NERO SX has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.

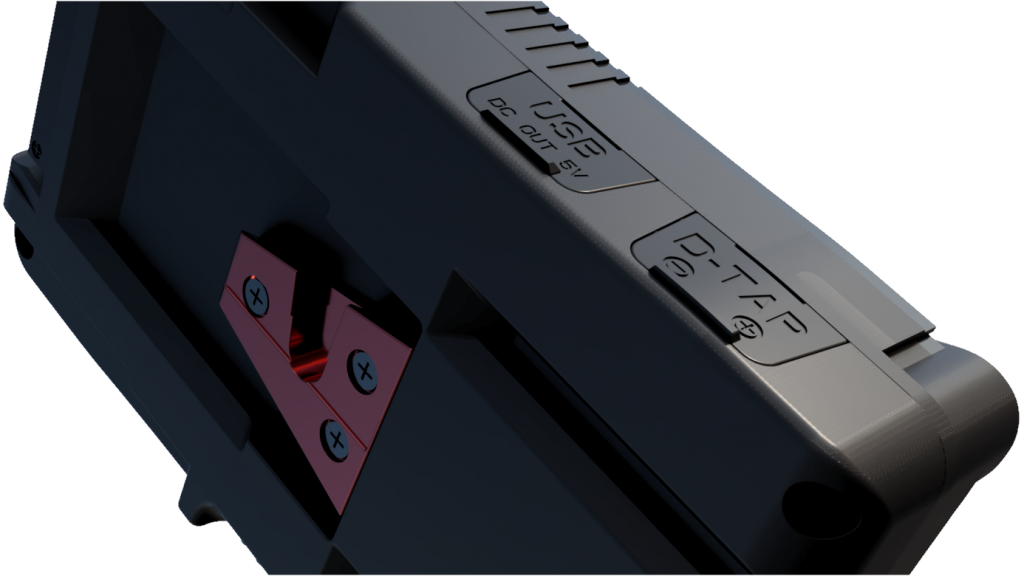

Built-in D-Tap and USB Output Socket
Through it’s additional integrated D-Tap DC Power output the NERO SX can deliver
14.8V, 148W/10A to all professional devices. An extra USB power output allows the
charging of mobile phones, tablets or other accessories using one single battery.
Design made in Switzerland
With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.
All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.
IATA Transport Regulations
All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.
Video presentation of product
Under the FAA, IATA, PHMSA, and IMDG regulations, the NERO SX are factory packed in an anti-static plastic bag and put into a cardboard box with internal shock-resistance protection. This kind of packaging makes it travel and transportation safety for the Sea, Air, and Road.
- 1 x NERO SX BATTERY PACK
- 1 x User Manual - (English)
- 2 Year Limited Warranty
All the pictures and documents can be used for media promotion.
- MARKETING SUPPORT DOWNLOADVisit online
- HEDBOX NERO SX User Manual.pdf (1.52 MB)Download
- HEDBOX PRO-Battery-Limited-WARRANTY (0.75 MB)Download
- HEDBOX NERO SX Free Fall Drop test Report (1.03 MB)Download
- HEDBOX NERO SX Technical Bulletin Overwiev (0.97 MB)Download
- HEDBOX NERO SX - CE EU DECLARATION OF CONFORMITY (0.36 MB)Download
- HEDBOX NERO SX - ECO COMPLIANCE (1.06 MB)Download
- HEDBOX NERO-SX UN-MSDS 2022 (0.99 MB)Download
