Battery Chargers

RP-DC100A

THIS PRODUCT IS DISCONTINUED!

THIS PRODUCT IS DISCONTINUED!

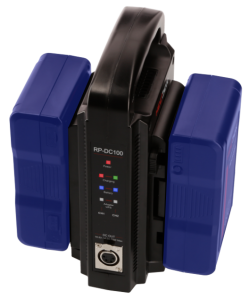

2-ch Simultaneous Charger

The RP-DC100 digital dual battery charger conveniently charges two professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge two batteries at the same time saving you both time and money.

Charging Technology

Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries.

It is used to charge the battery from 0% to 80% (RED light ON). When the batter is charged to 80%, impulse voltage charging (GREEN Light ON) takes over until the battery reaches 100%. Charger CPU automatically adjusts charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

LED Display Screen

LED display provides clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. Displayed charging mode (red LED on – constant current charging, green LED on – impulse voltage charging) provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense light, the readout function is enabled in the dark.

Integrated locking support stand

The RP-DC100A is equipped with extra support stands making it easy to operate. The support stands provide extra stability while charging only one battery.

Power Bank Mode

The RP-DC100A can easily become a very powerful power bank if used with a specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4-pin XLR female to male (included in the box). The power output is DC14.5V/4.5A, 75W and the capacity depends on the batteries used.



For this application use the cable: RPC-DC4X4 / 4-Pin XLR Male to Female Plug.

DC Out 16.5V , 4.5A/75W

With a 4-pin XLR female connector on the front panel, the RP-DC100A provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4 – 4-pin XLR female to male (included in the Box), the charger can be used as an AC-DC adapter of DC 14.5V, 4.5A/75W output.

Battery Charger RP-DC100A can be used with these additional products:

PB-D100A - Gold Mount Battery Pack
PB-D150A - Gold Mount Battery Pack
PB-D200A - Gold Mount Battery Pack
RPC-DC4X - cable

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :RP-DC100A Intelligent Dual Digital Professional Battery Charger
AC Power In : AC 110 – 240V , 50/60Hz
Battery Mount :AB-Lock and Gold Mount Battery Plate
Power Consumption :Max 85W
Power Output 1 :DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge
Power Output 2 :DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge
DC Power Out :DC 16.5V / 4.5A / 75W (max)
Power Bank Out :DC 16.5V / 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)
Charging Type :Ni-CD , Ni-MH , Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :124 x 114 x 445 mm
Weight :218 g
Charging Method :RP-DC100A use advance Constant Current and Impulse Voltage charging Methods

Supported products

Package includes

Under transport regulation, the RP-DC100A is factory packed in a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.

  • 1 x RP-DC100A Battery Charger
  • 1 x RPC-DC4X4 DC 4Pin XLR Power Cable 2m

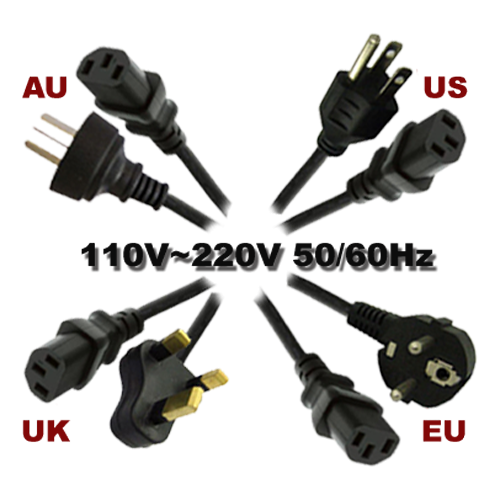

  • 1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 1 x User Manual - (English)
  • 1 x 2 Year Limited Warranty
1 x RP-DC100A Battery Charger
1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
