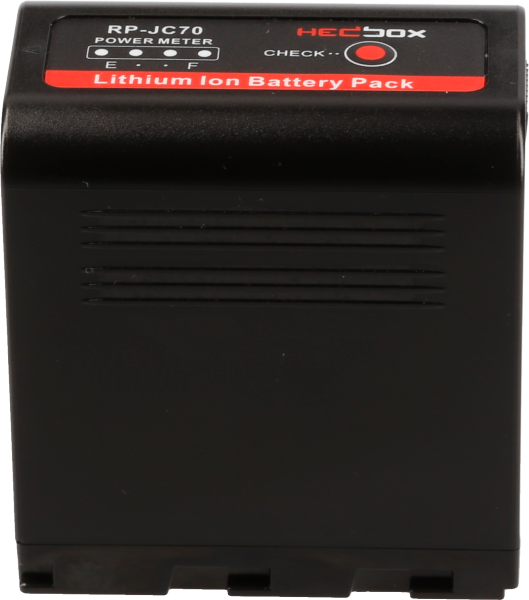

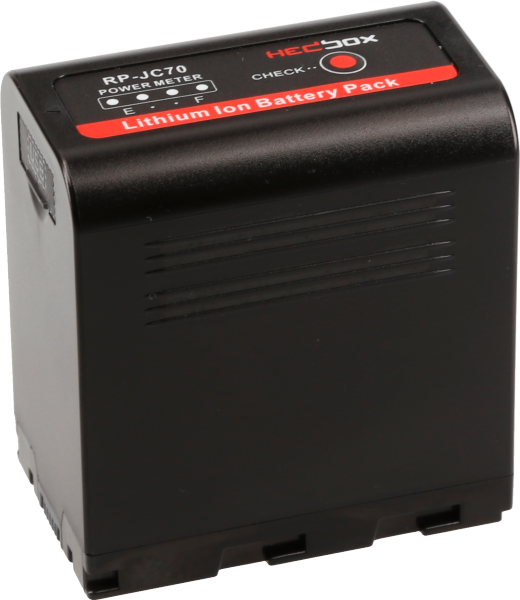

|Model :||RP-JC70 Info-Lithium Battery Pack with 4-LED Power Monitor|
|Apply For :||JVC Camcorders GY-HMQ10, HM600, HM650, and GY-LS300|
|Product Color :||Dark Grey|
|Bat. Cell Model :||Samsung AA High Quality 18650 x 6|
|Bat. Cell Chemistry :||Lithium-Ion|
|Output Voltage :||7.4V DC|
|Capacity (mAh) :||7800 mAh|
|Capacity (Wh) :||57.7 Wh|
|USB Output :||5V, 5W / 1A max ( Dust Protection Cover )|
|DC Output :||7.4V, 30W / 4A max ( Dust Protection Cover )|
|DC Input :||Charging purpose only 8.4V, 2.1A max ( Dust Protection Cover )|
|Power Meter :||4-level Blue Color LED Power indicator|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Data Comm. :||Built-in Microprocessor for Data Communication with Canon Camcorders|
|Dimensions (WxDxH) :||76 × 70 × 43 mm|
|Weight :||325 g|
|Charging Method :||For best charging performances and maximum charging capacity use Charger|
HEDBOX RP-DC50 & RP-DC40 with RP-DJC70 Charger Plate.
Built-in DC Output/Input
A DC input/output standard pole-tap 5.5/2.1mm socket is equipped on the side of RP-JC70 battery. You can connect an on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with the camera. The max power from the DC pole-tap is 7.4V/30W 4A. The pole-tap socket can also be used as a charging input, 8.4V charging power required.
Built-in USB 5V, 1A Socket
For all of your USB powering needs, we designed the USB 5V, 1A output. With this function you can use the RP-JC70 like any power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.
LED Monitor Indicator
RP-JC70 contains a built in 4-LED Power Meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.
Data Communication with Camcorder
Using the built in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen.
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.
No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection
JVC | GY-LS300
JVC | GY-HMQ10
JVC | GY-HM660
JVC | GY-HM650
JVC | GY-HM620
JVC | GY-HM200
