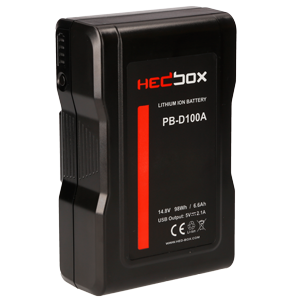

Model : | PB-D100A Professional Info-Lithium Battery Pack |
Mount Type : | Gold – Mount ( Anton Bauer – holder ) |
Power Meter : | Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% batt. capacity ) |
Product Color : | Dark Grey |
Bat. Cell Model : | Samsung SDI AA High Quality 18650 x 12 |
Bat. Cell Chemistry : | Lithium-Ion |
Output Voltage : | 14.8V DC |
Minimum Out Voltage : | 10.8V DC ( Auto Power Control ) |
Capacity : | 6600 mAh / 98 Wh – On AIR Transport Use |
Maximum Load : | 10A / 145W |
USB Output : | 5V, 10W / 2.1A max ( Dust Protection Cover ) |
D-Tap Output : | 14.8V, 88W / 6A max ( Dust Protection Cover ) |
DC Output : | 14.8V, 88W / 6A max ( Dust Protection Cover ) |
Maximum Charge : | 16.8V / 2.3A |
Dimensions (WxHxD) : | 96 x 152 x 53 mm |
Operating Temperature : | –20°C to +45°C (–4°F to +113°F) |
Weight : | 780 g |

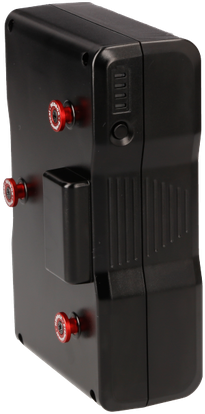

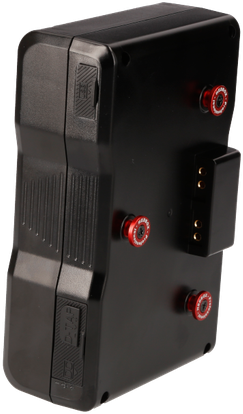

Gold – Mount Connection Holder
PB-D100A has a standard Gold-Mount connection with a high-quality lightweight aluminum holder to ensure for safe and reliable mounting.
High Power Capacity of 98Wh / 6600mAh
The PB-D100A consists of Samsung (2600mAh) 18650 battery cells, and reaches up to 98Wh / 6600mAh capacity. The battery can run approximately 3 hours for normal 30W ENG Camcorders, and approximately 1 hour for ARRI Alexa Camcorders.
Built-in USB 5V, 2.1A Output Socket
The USB 5V/1A output can be used to power any external USB electronic devices. This function allows you to use the PB-D100A like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.
4-LED Power Monitor Indicator
PB-D100A contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.
Built-in D-tap 14.8V, 88W/6A,
DC Output Socket
A D-tap DC output socket (Dust Cover Protection) is equipped on the side of the PB-D100A battery pack. With this external power supply facility, you can connect an on-camera LED light, video monitor, wireless transmitter or digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The max power from the two D-taps is 88W/6A.
Powering LED Light
The PB-D100A is an ideal power supply for any V-mount LED light on the world market for both the studio and outdoor application. Thanks to the built in 4-LED Power Meter, at the press of a button, the PB-D100A displays the remaining battery percentage at 100%, 75%, 50%, or 25%.
High Quality Li-Ion Cell
Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.

Multiple Protections
The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.

No Memory Effect
Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.

Environmentally-Friendly
Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection

Tech specifications
Supported products
Package includes
Under the FAA, IATA, PHMSA and IMDG regulation, the PB-D100A is factory packed in an anti-static plastic bag and put in to a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.
- 1 x PB-D100A BATTERY PACK
- 1 x User Manual - (English)
- 2 Year Limited Warranty
