Battery Chargers

RP-DC100V

2-ch Simultaneous Charger

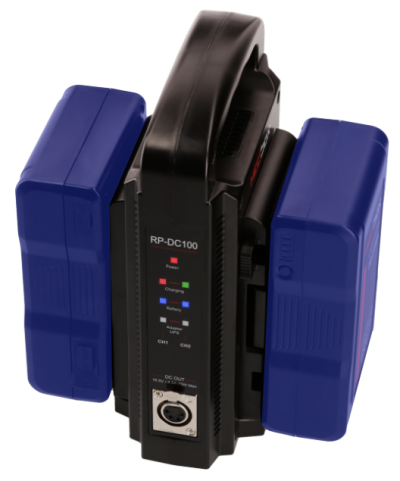

The RP-DC100V digital dual battery charger conveniently charges two professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charging activation, allows you to charge two batteries at the same time saving you both time and money.

Charging Technology

Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries.

It is used to charge the battery from 0% to 80% (RED light ON). When the batter is charged to 80%, impulse voltage charging (GREEN Light ON) takes over until the battery reaches 100%. Charger CPU automatically adjusts charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

LED Display Screen

LED display provides clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. Displayed charging mode (red LED on – constant current charging, green LED on – impulse voltage charging) provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense light, the readout function is enabled in the dark.

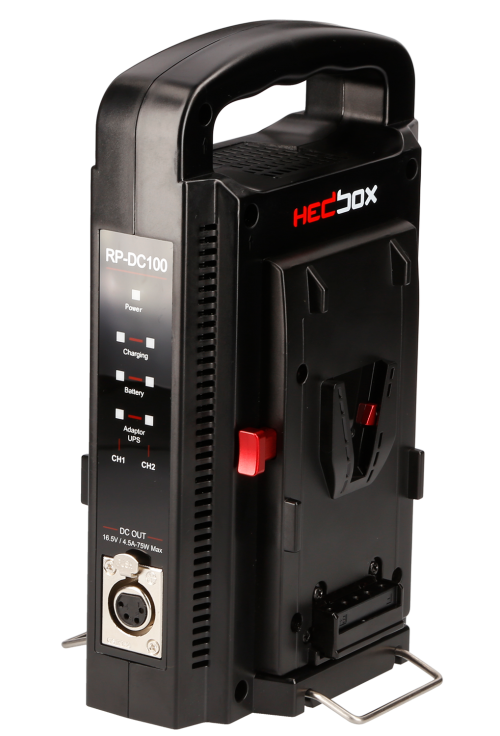

Integrated locking support stand

The RP-DC100V is equipped with extra support stands making it easy to operate. The support stands provide extra stability while charging only one battery.

Power Bank Mode

The RP-DC100V can easily become a very powerful power bank if used with a specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4-pin XLR female to male (included in the box). The power output is DC14.5V/4.5A, 75W and the capacity depends on the batteries used.



For this application use the cable: RPC-DC4X4 / 4-Pin XLR Male to Female Plug.

DC Out 16.5V, 4.5A / 75W

With a 4-pin XLR female connector on the front panel, the RP-DC100V provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 14.5V/4.5A, 75W output.


RP-DC100V

Buy this product!

Find a store near you

Battery Charger RP-DC100V can be used with these batteries:

PB-D100V- battery
PB-D150V- battery
PB-D200V- battery
RPC-DC4X - cable

High Quality Li-Ion Cell

Latest Samsung and LG lithium-ion battery cells (model 18650) are used in Hedbox battery packs. They provide no effect on memory, give high efficiencies, and allow for a compact and lightweight battery.

Multiple Protections

The circuit in the battery pack has multiple protections: abnormal current protection, voltage protection, short circuit protection, and overheating protection. This allows for the battery to have a longer operational life and a safer use for professional purposes.

No Memory Effect

Hedbox batteries provide the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing a memory effect. This means the battery never loses its ability to hold a full charge.

Environmentally-Friendly

Hedbox batteries are fully in compliance with European Union RoHS (Restriction of Hazardous Substances) regulations and are 100% free of lead, cadmium, and mercury. Hedbox products take part in actively protecting the environment and preserving the highest standards of environmental protection

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications



Model :RP-DC100V Intelligent Dual Digital Professional Battery Charger
AC Power In : AC 110 – 240V , 50/60Hz
Battery Mount :V-Lock and V Mount Battery Plate
Power Consumption :Max 85W
Power Output 1 :DC 16.8V / 3A Sinlge Chanel / 2.4A Dual Chanel Charge
Power Output 2 :DC 16.8V / 3A Sinlge Chanel / 2.4A Dual Chanel Charge
DC Power Out :DC 16.5V / 4.5A / 75W (max)
Power Bank Out :DC 16.5V / 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)
Charging Type :Ni-CD , Ni-MH , Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :124 x 114 x 445 mm
Weight :218 g
Charging Method :RP-DC100V use advance Constant Current and Impulse Voltage charging Methods



Supported products

Package includes

Under transport regulation, the RP-DC100V is factory packed in a cardboard box with internal shock resistance protection. This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.

  • 1 x RP-DC100V Battery Charger
  • 1 x RPC-DC4X4 DC 4Pin XLR Power Cable 2m
  • 1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 1x User Manual (English)
  • 1 x 2 Year Limited Warranty
1 x RP-DC100V Battery Charger
1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
