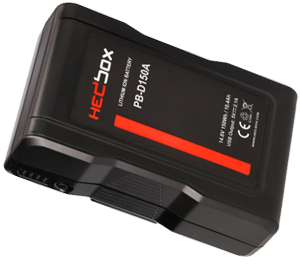

|Model :||PB-D150A Professional Info-Lithium Battery Pack|
|Mount Type :||Gold – Mount ( Anton Bauer – holder )|
|Power Meter :||Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% batt. capacity )|
|Product Color :||Dark Grey|
|Bat. Cell Model :||Samsung SDI AA High Quality 18650 x 16|
|Bat. Cell Chemistry :||Lithium-Ion|
|Output Voltage :||14.8V DC|
|Minimum Out Voltage :||10.8V DC ( Auto Power Control )|
|Capacity :||10400 mAh / 153.92 Wh|
|Maximum Load :||10A / 150W|
|USB Output :||5V, 10W / 2.1A max ( Dust Protection Cover )|
|D-Tap Output :||14.8V, 75W / 5A max ( Dust Protection Cover )|
|DC Output :||14.8V, 75W / 5A max ( Dust Protection Cover )|
|Maximum Charge :||16.8V / 2.3A|
|Dimensions (WxHxD) :||96 x 152 x 53 mm|
|Operating Temperature :||–20°C to +45°C (–4°F to +113°F)|
|Weight :||880 g|
Gold – Mount Connection Holder
PB-D150A have standard Gold-Mount connection and we adopt the high quality lightweight aluminium holders, that ensures the reliable and safe mounting.
Up to 154Wh / 10A High Capacity
Battery Pack consists SAMSUNG (2600mAh) 18650 Battery Cells, and reaches up to 154Wh / 10A high capacity. The Battery can run approx 5 hours for normal 30W ENG Camcorders, and approx 1.5 hours for ARRI Alexa Camcorder.
Built-in USB 5V, 2.1A Output Socket
To Power external Electronic Devices that can be powered with USB Power, we designed the USB 5V, 2.1A Output. With this function you can use HEDBOX Battery like Power Station to charge your Cell Phone or Pad, or any other Electronic Devices that can be powered with USB 5V Power.
4-LED Power Monitor Indicator
Battery Pack have build in 4-LED Power Monitor indicator that, upon the press of test button, shows whether 100%, 75%, 50%, or 25% of power is left remaining in the battery.
Built-in D-tap 14.8V 80W, 6A, DC Output Socket
A D-Tap DC output socket ( Dust Cover Protection) is equipped on the side of the Battery Pack. With this external Power supply facility, you can connect on-camera LED light, Video Monitor or Wireless Transmitter on the D-tap socket, and get power simultaneously together with Battery attached to the Camera, or totally separately like independent Power Station. The Max power from D-tap is 80W, 6A.
Powering LED Light
The Professional Battery Pack is ideal as Power Supply to any LED Light unit on the world market. Depending on the battery mount style it is perfect solution for studio or out door LED Light application use. Thanks to the build in 4-LED Power Monitor indicator (upon the press of test button, shows whether 100%, 75%, 50%, or 25% of power is left remaining in the battery) the LED Light operation and function is secure for unexpectedly power off.
High Quality Li-Ion Cell
Latest Samsung and LG Lithium -Ion Battery cells model 18650 that are used in HEDBOX Battery Pack, provide no Memory Effect, High Efficiency, Compact and Light – Weight.
The Circuit of the Battery Pack has Multiple Protection, of Abnormal Current Protection, Voltage Protection, Short Circuit Protection and Overheating Temperature Protection. This allows the Battery Pack longer Operation life and safer use for Professional purposes.
No Memory Effect
HEDBOX Battery Packs provides the Advantages of Lithium-Ion, meaning it can be charged or discharged at anytime without developing Memory Effect. This means the Battery never loses its ability to hold a Full Charge.
HEDBOX Battery Packs are fully in compliance with European Union RoHS regulations (Restriction Of Hazardous Substances) and are 100% free of Lead, Cadmium and Mercury, where HEDBOX products take part in active protecting of the environment and preserving the highest standards of environmental protection.
