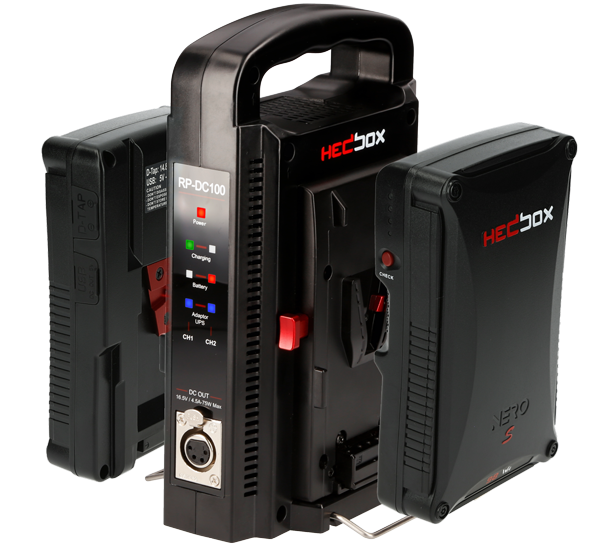

PROBANK-2S
High Capacity 196Wh
Professional Power Bank Set

The Hedbox PROBANK System set provides a continuous power supply to all units used in the studio and in the field. A 2-Ch Sequential Power Supply Mode uses two batteries and a specially designed Hedbox Professional high flexibility Power Cable model RPC-DC4X4, (4-pin XLR female to male included in the box). With operation on 1 or 2 batteries in the system, the Probank first use battery in channel 1 followed by the battery in channel 2. When the first battery is drained, the system automatically hot swap power from the second battery, providing a continuous power supply with no delay. The power output is DC16.5V, 4.5A / 75W, and the capacity depends on the batteries used in the setup. The system provides a constant DC power supply for video, audio, and lighting equipment with the total independence of a regular AC power supply.

LCD Display Screen with Back-light

LCD Display provides a clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. The displayed charging mode provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense blue color light, the readout function is enabled in the dark, giving you the possibility to use the charger at any place and at any time.

2-ch Sequential Power Supply Mode

The PROBANK-2S offers a 2-Ch Sequential Power Supply Mode. if used with a specially designed Hedbox Professional high flexibility Power Cable model RPC-DC4X4, (4-pin XLR female to male included in the box). It allows operation with 1 or 2 batteries in the system. When using the 2-channel Battery operation mode, the system will first use the battery in channel 1 followed by the battery in channel 2. When the first battery is drained, the system automatically hot swap power from the second battery, providing a continuous power supply with no delay. The power output is DC16.5V, 4.5A / 75W, and the capacity depends on the batteries used in the setup.



For this application use the cable: RPC-DC4X4 / 4-Pin XLR Male to Female Plug.

Integrated locking support stand

The power bank unit is equipped with extra support stands making it easy to operate. The support stands to provide extra stability while charging only one battery.

DC Out 16.5V / 4.5A / 75W

With a 4-pin XLR female connector on the front panel, the PROBANK System provides DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights, and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 16.5V / 4.5A / 75W output.

Charging Technology

Intelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. A pre-charging stage (trickle charge) is used as a safety precaution with high-capacity batteries. The mix of Constant Current and Impulse Voltage (CC/IV) charging mode is the maximum effective way where HEDBOX technology charges Lithium-Ion Batteries to their full efficiency.

Constant Current & Impulse Voltage

The Constant Current charging method is used to charge the battery from 0% to 80% of their SOC ( State of Charge Capacity). When the battery is charged to 80%, the Impulse Voltage charging takes over until the battery reaches 100% of SOC. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.

High-Quality Aluminium V-lock release

Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provide up to 10,000 cycles for a V-mount battery on the plate.

NERO-M - V-Mount Battery pack
NERO-L - V-Mount Battery pack
NERO-XL - V-Mount Battery pack
RPC-DC4X - DC Power Cable

Design made in Switzerland

With R&D (research & developing) department located in Switzerland – Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in HEDBOX Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

Worldwide Distribution

With established distribution centers in the United States, Europe, the Middle East, and Asia, the company has organized fast and secure delivery of its products to customers around the world.

IATA Transport Regulations

All HEDBOX warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all our products worldwide via AIR Road and Sea.

Interested in this product ... ? Want to buy ... ? Please click here ... Find a store near you

Tech specifications

Model :PROBANK-2S Power Bank Supply System
AC Power In : AC 110 – 240V , 50/60Hz
Battery Mount :V-Lock and V Mount Battery Plate
Power Consumption :Max 85W
Power Capacity 1 :6600mAh  / 98 Wh Single Chanel
Power Capacity 2 :13200mAh  / 196 Wh Dual Chanel
DC Power Out :DC 16.5V / 4.5A / 75W
Power Connection Out :4-Pin XLR
Battery Power Type :Li-Ion
Operating Temperature :–20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) :124 x 114 x 445 mm
Weight :2.50 Kg
Charging Method :HED-DC150V use advance Constant Current and Impulse Voltage charging Methods



Supported products

ATOMOS Products
BLACKMAGIC Design
CANON Camcorders
JVC Camcorders
LED Lights
Panasonic Camcorders
Photo Cameras
PRO Batery Packs
Professional Cameras
SONY Camcorders
Sound Devices
Studio Cameras
Video Monitors
Video Recorders
Video Devices
Viewfinder Monitors

Package includes

Under the FAA, IATA, PHMSA and IMDG regulation, the PROBANK-2S is factory packed in a master Box. The batteries and power bank main unit/charger, are packed in separate cardboard box with internal shock resistance protection.  This kind of packaging makes it travel and transportation safe for the Sea, Air and Road.

  • 1 x HED-DC150V Pro Battery Charger
  • 2 x NERO S Pro Battery Packs
  • 1 x RPC-DC4X4 DC Power Supply Cable with 4pin XLR
  • 1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
  • 2 x On-Line Product Registration
1 x 110V – 220V AC Power Cord ( Depends on the market the box consist AC Cord with AU-Plug, EUR-Plug, US-Plug or UK-Plug)
